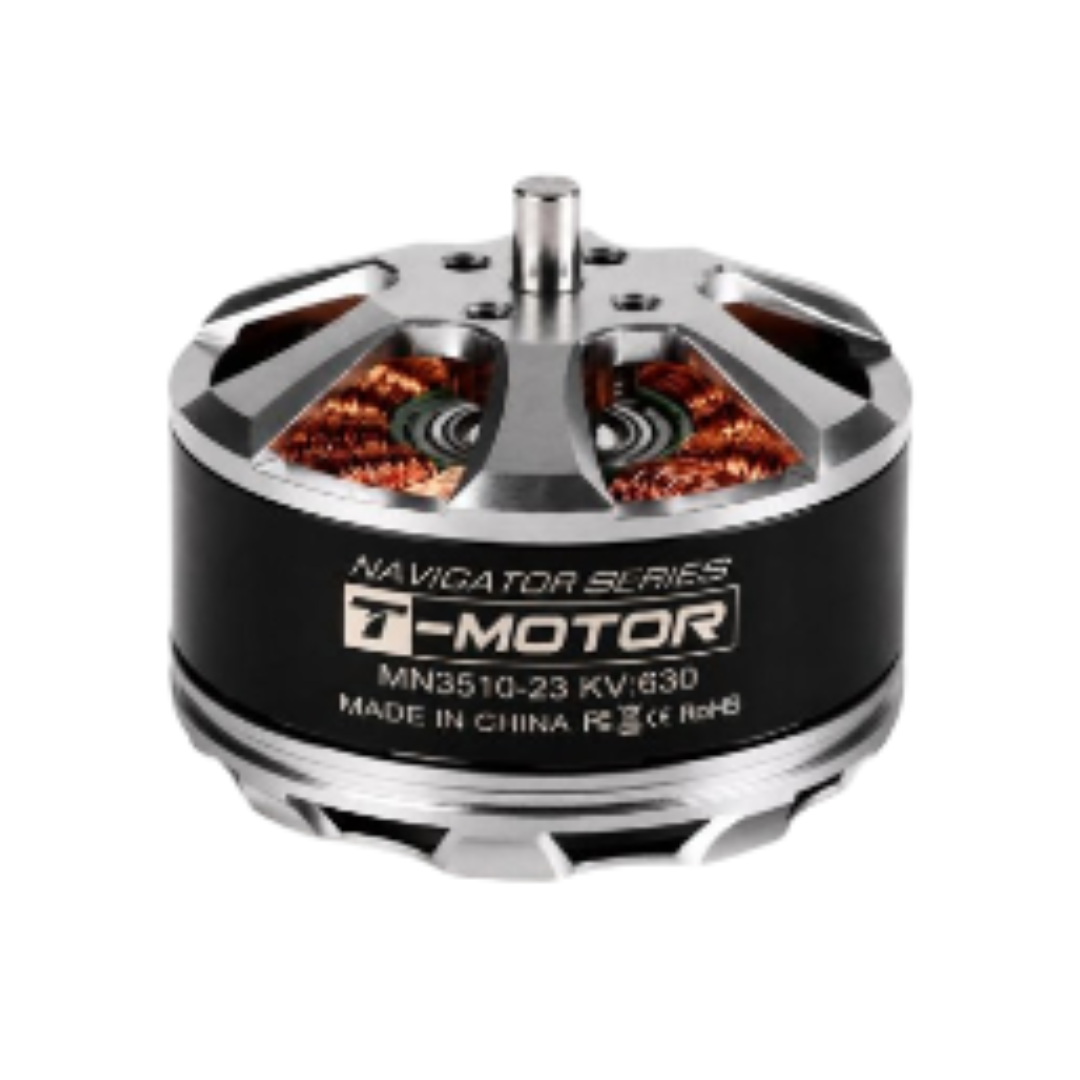

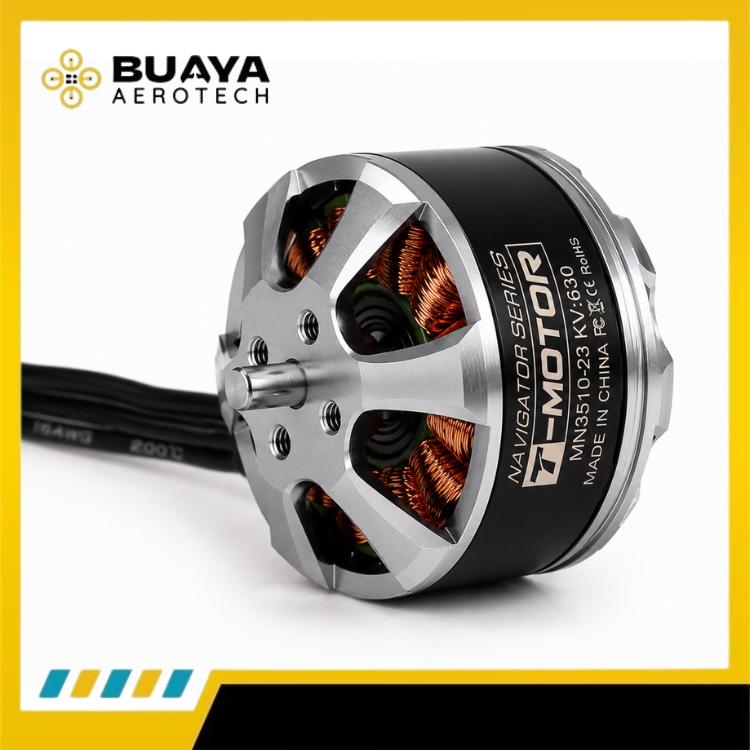

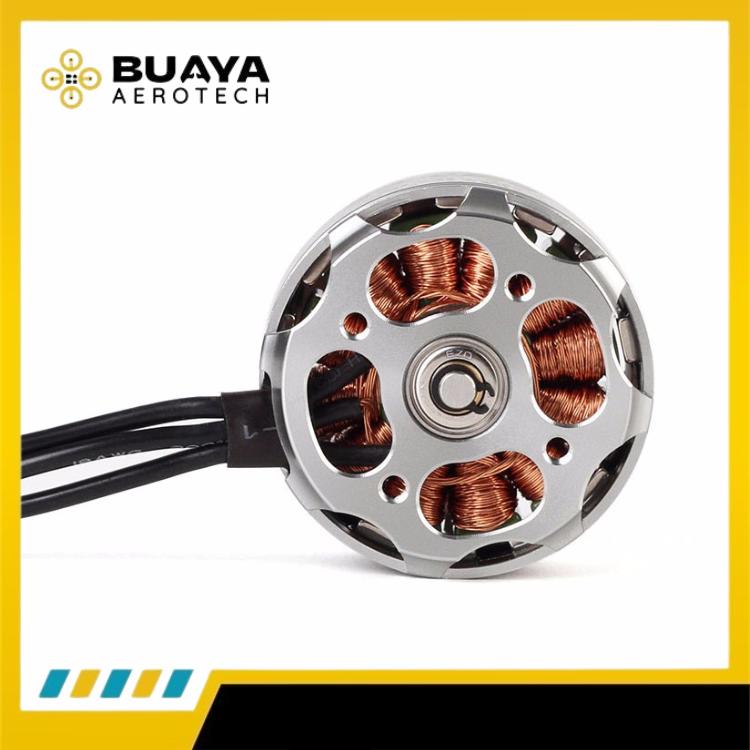

About T-MOTOR MN3510 Multirotor Fixed Wing UAV Motor KV360/KV630/KV700
T-Motor MN3510 KV360/KV630/KV/700 Navigator Series brushless motor is designed for superior performance in UAV applications. With oversized high-quality ball bearings, it ensures smooth, stable operation at low speeds and withstands pressure for enhanced frame stability. Featuring a maximum thrust of 2.2kg and an MTBF of about 1000 hours, the MN3510 offers exceptional balance and durability. Ideal for multi-rotors, VTOL, and fixed-wing UAVs, it combines precision engineering with high-strength construction for reliable, long-lasting performance.
Navigator MN3510 Highlights:
* Max. thrust:2.2kg
* MTBF：About1000hours
* Features：Super Balance; High Strength Construction
Application Areas：
Multi-rotors, VTOL, and Fixed-wing UAVs.
Specification
* Test Item: MN3510 KV630
* Configuration: 12N14P
* Internal Resistance: 65mΩ
* Motor Dimensions: Φ41.8×28.5mm
* Shaft Diameter: 4mm
* Stator Height: 10mm
* Stator Diameter: 35mm
* Cable Length: 600mm
* AWG: 18#
* Weight Excluding Cables: 97g
* Weight Including Cables: 119g
* Idle Current@10v: 0.5A
* No.of Cells(Lipo): 3-4S
* Max Power (180S): 495W
* Max Continuous Current 180S: 22A

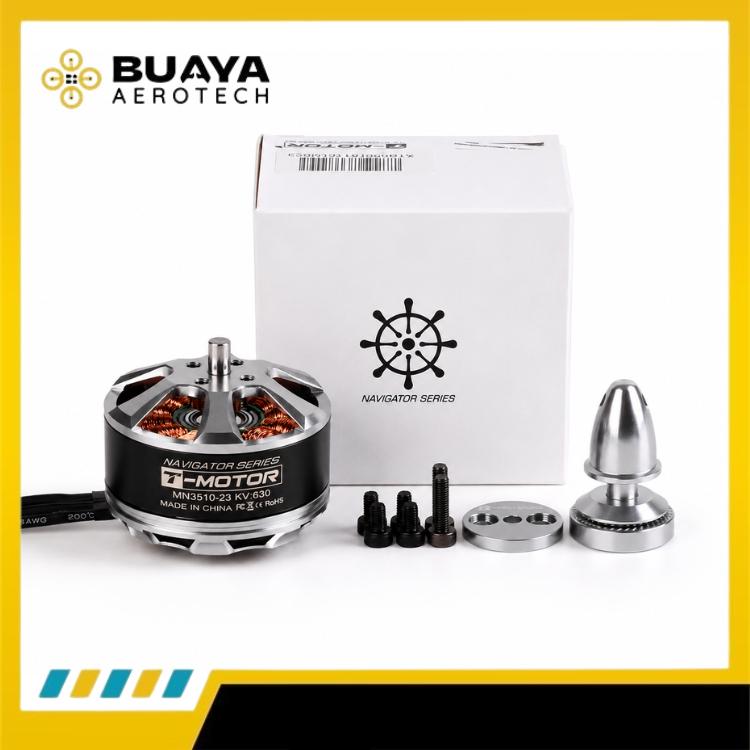

Packing List Includes:
1x T-MOTOR MN3510 Motor KV360/KV630/KV700( kv which you choose)
1x Hardware pack
