Features
Improved PCB design is better for heat dissipation.
LED on the top side of PCB.
Solder pads are improved and easier to solder to.
Built-in a TCXO (temperature compensated crystal oscillator)
Specification

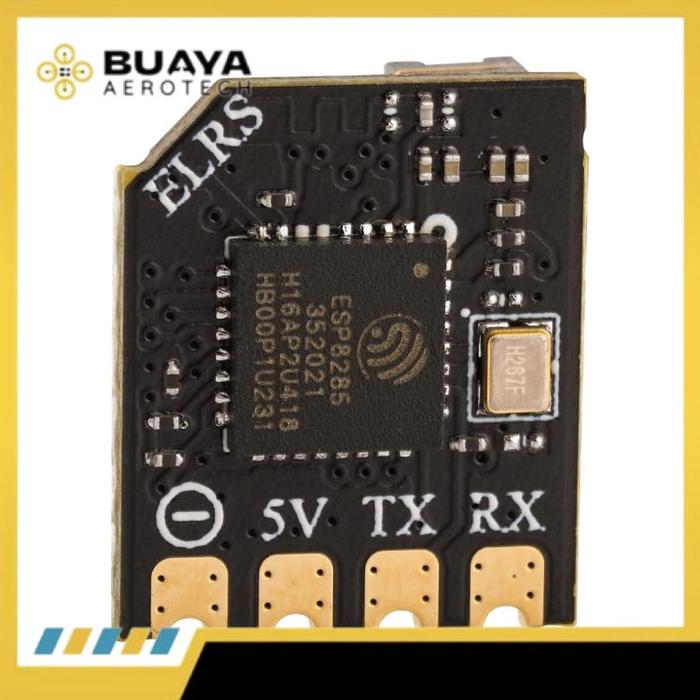

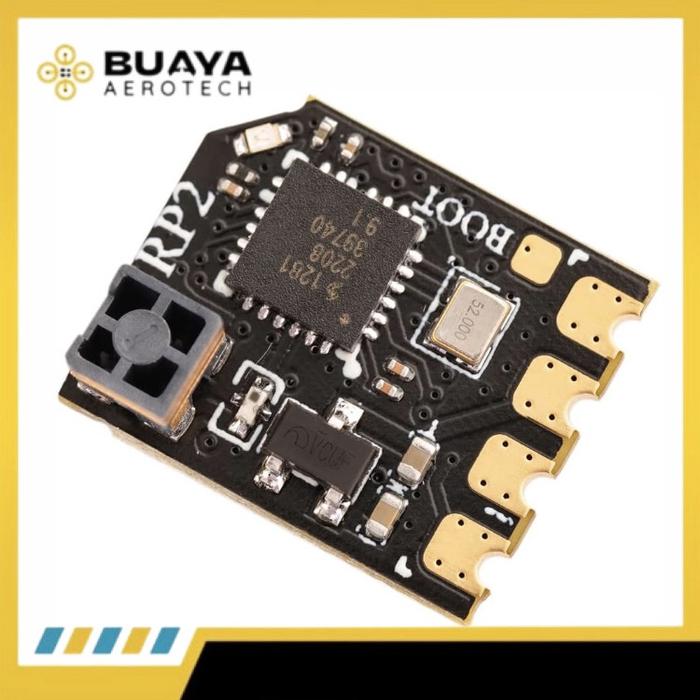

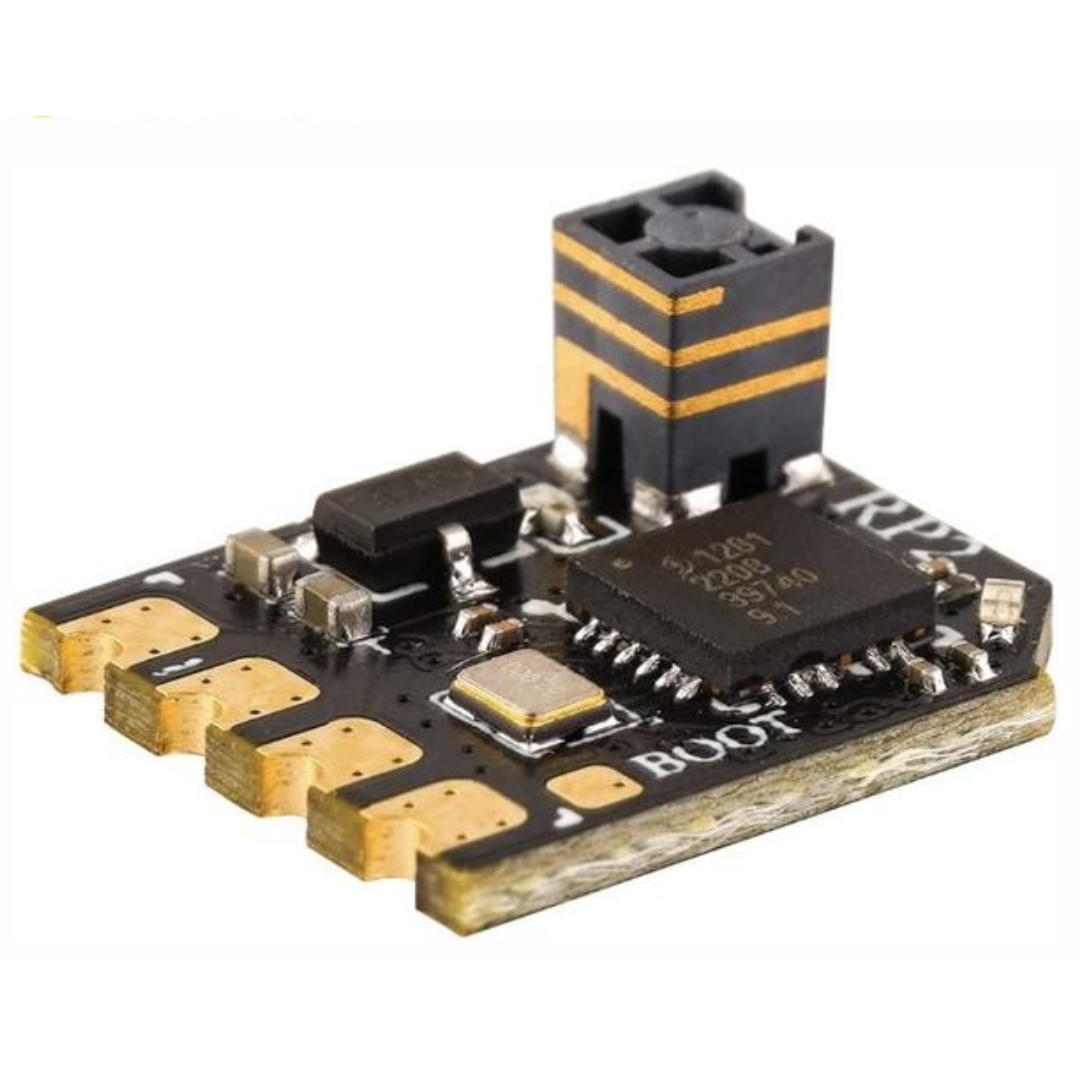

Item: RP2 Nano ExpressLRS 2.4ghz Receiver
Type: ISM
MCU: EPS8285
RF Chip: SEMTECH SX1281
Telemetry RF power: 10mW
Antenna: On Board SMT Antenna
Antenna: 65mm 2.4ghz T Antenna
Frequency Range: 2.404 – 2.479 Ghz
Maximum receive refresh rate: 500Hz/F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.55g (On Board antenna)
Dimension: 13mm*11mm*7mm
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF
