RadioMaster Ranger 2.4GHz ELRS Module Combo Set RP1 and RP2 Receiver – Ranger Combo

Features
• Built-in ExpressLRS Backpack
• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included
• With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification
• Item: Ranger Micro Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz – 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• Wifi Support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage: DC 6V – 16.8V
• Weight: 50g (with antenna) / 40.5g (without antenna)
• Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

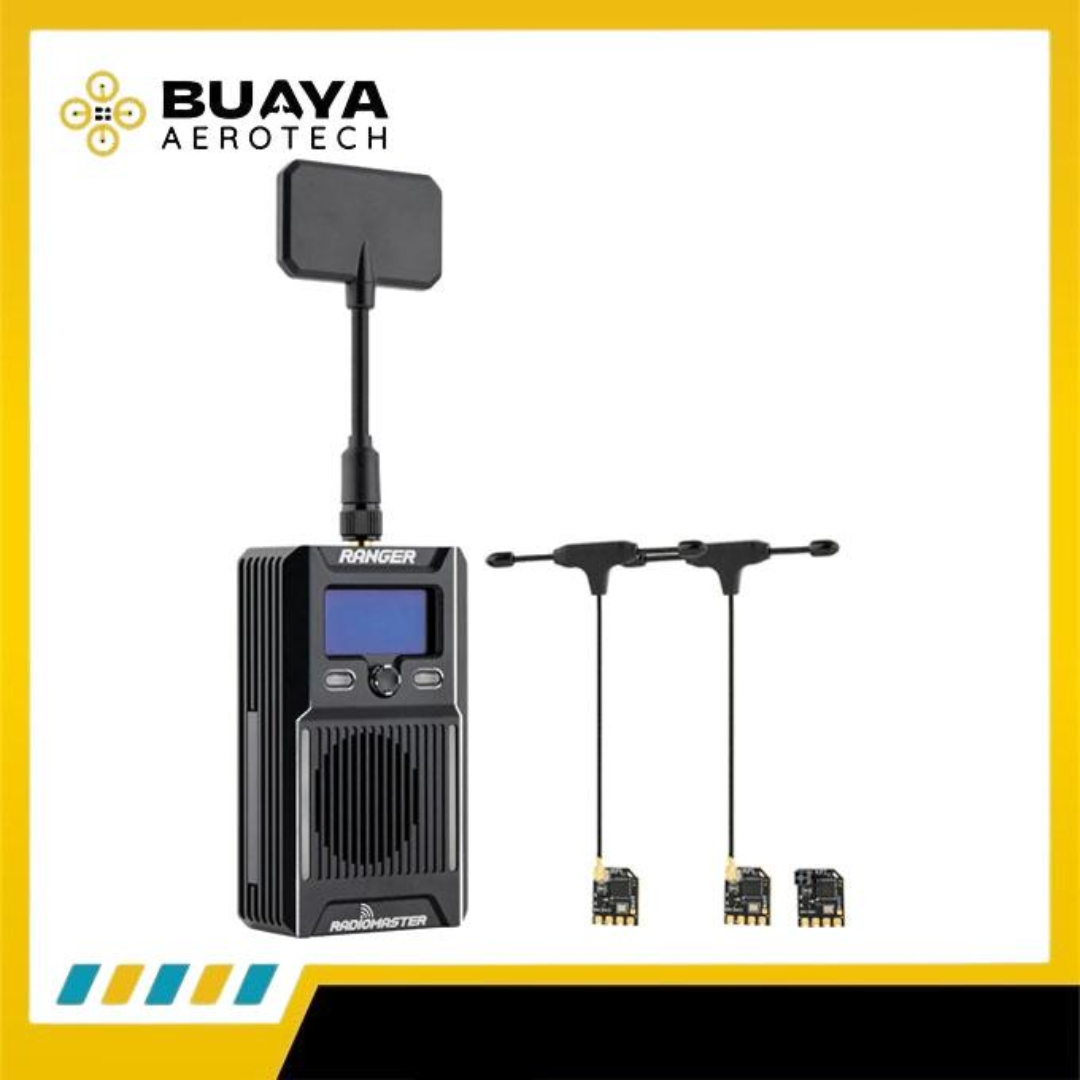

Package Includes
• 1 * Ranger Micro Module
• 1 * T Antenna
• 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
• 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
