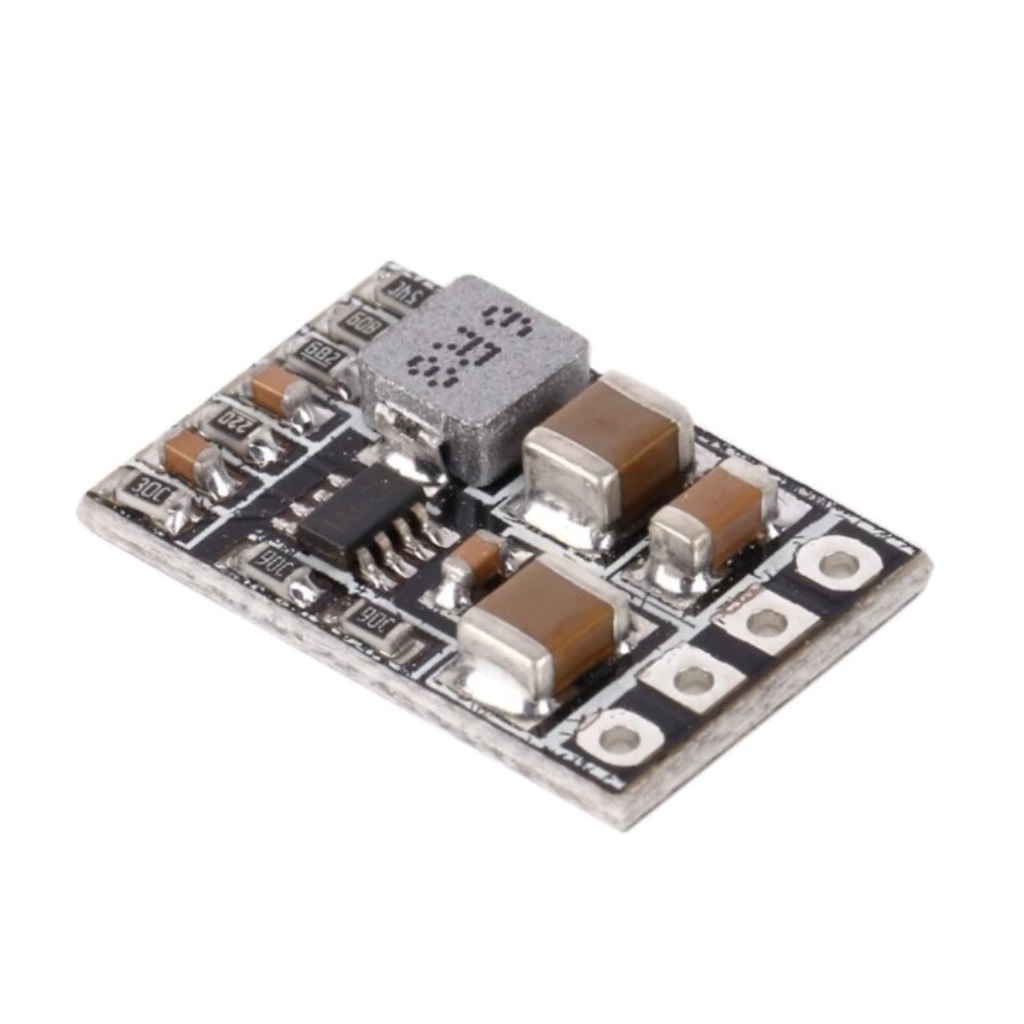

Matek Micro BEC 5V / 12V Adjustable Step Down

Micro BEC 5V/12V-ADJ

It is a high efficiency synchronous rectified step-down switch mode converter. It offers a very compact solution to achieve 1.5A continuous output current over a wide input supply range

Features:
– High Efficiency Synchronous Mode
– Wide 7V to 21V Operating Input Range
– Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)

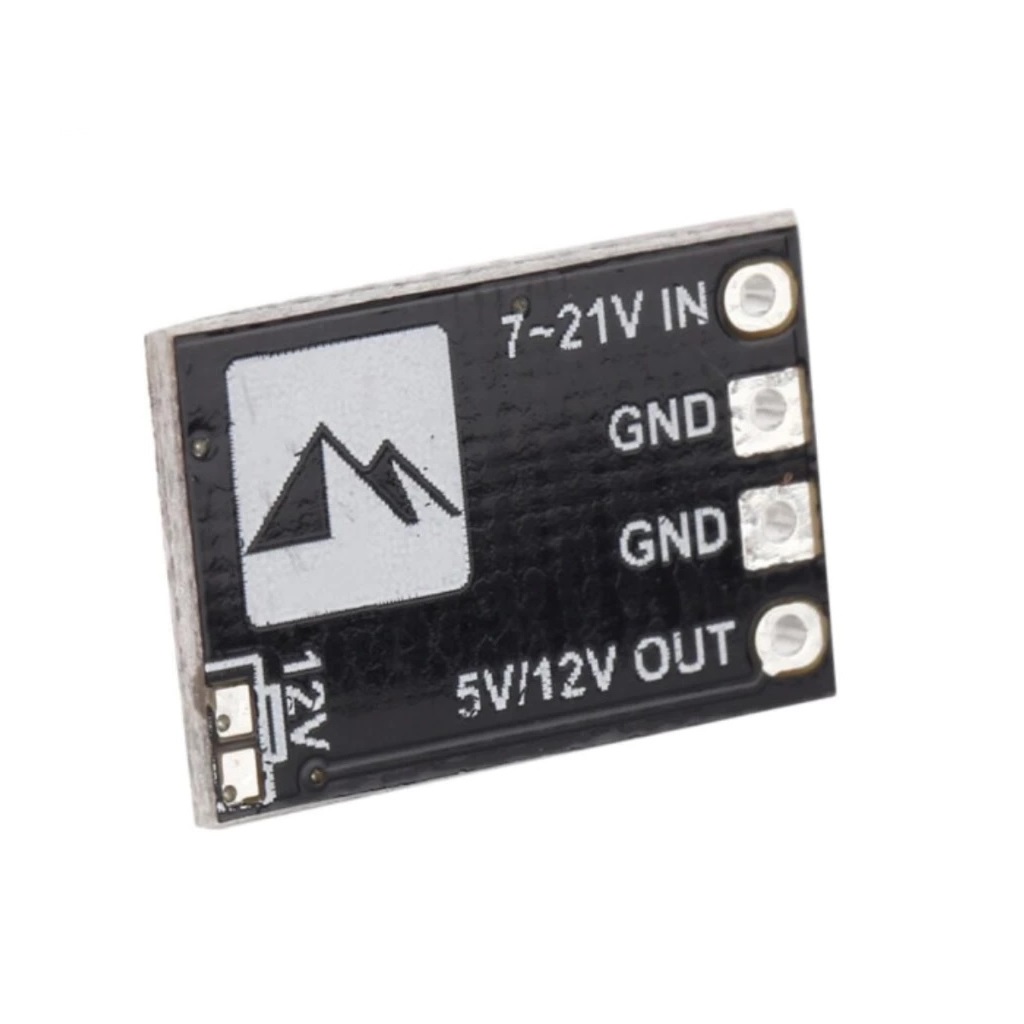

– VOut 5V or 12V Adj. Default is 5V
– VOut Load Regulation: 2%
– Standby current: <5mA
– Maximum Duty Cycle: 95%
– Output Ripple:
20mV(Vln=16V, VOut=12V@1.5A)
40mV(Vln=16V, VOut=5V@1.5A)
– OCP Protection and Hiccup
– Thermal Shutdown
– Output Short-circuit tolerant (5 seconds/minute)
– Pins distance: 2.54mm

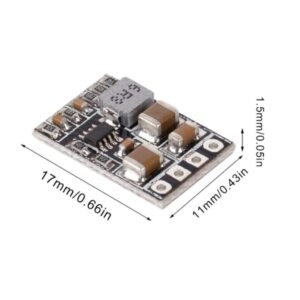

– Size & Weight: 11x17x3mm, 1g
