Description:
Advanced fixed-wing flight controller with powerful processing, integrated sensors, and flexible connectivity.

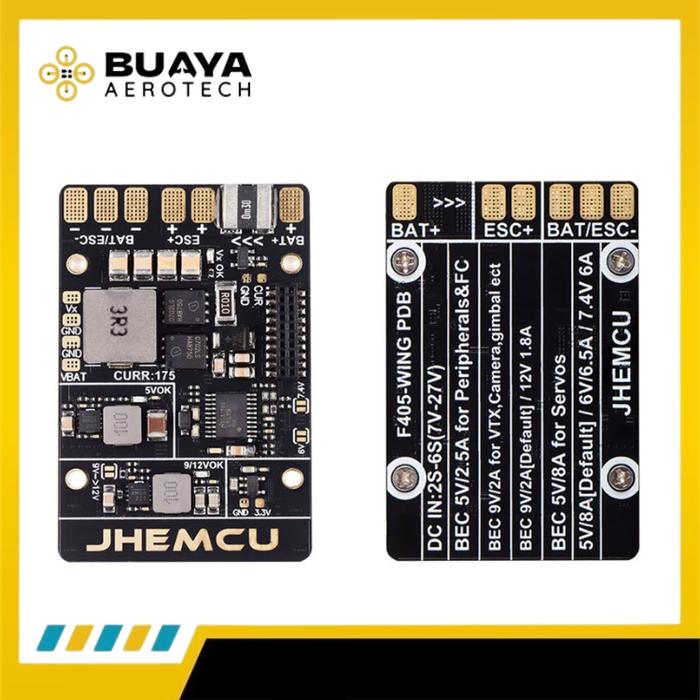

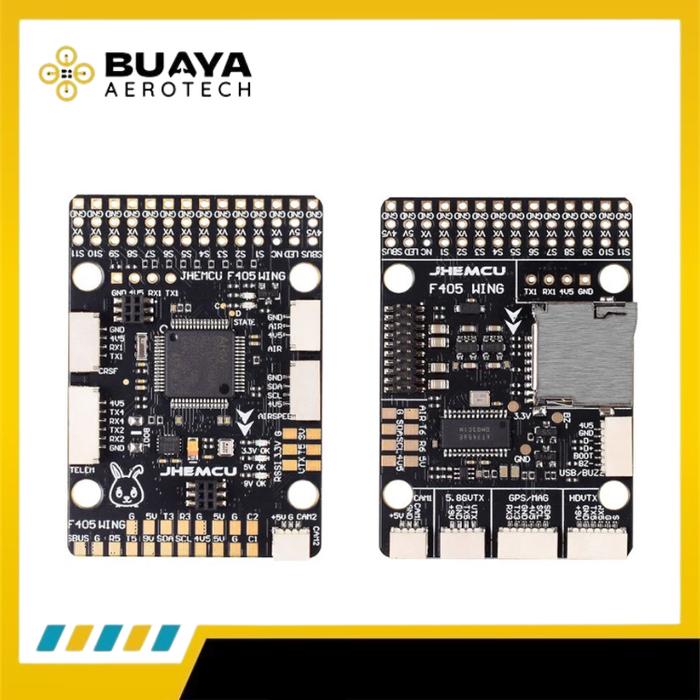

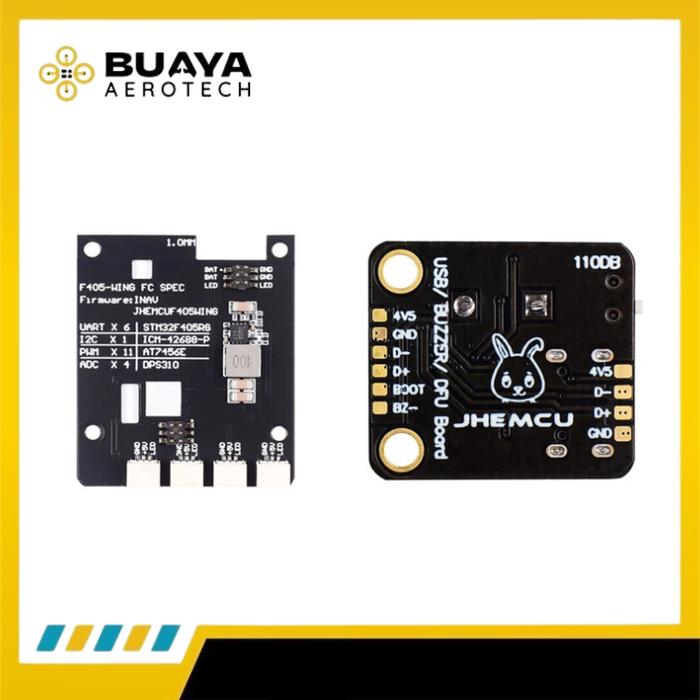

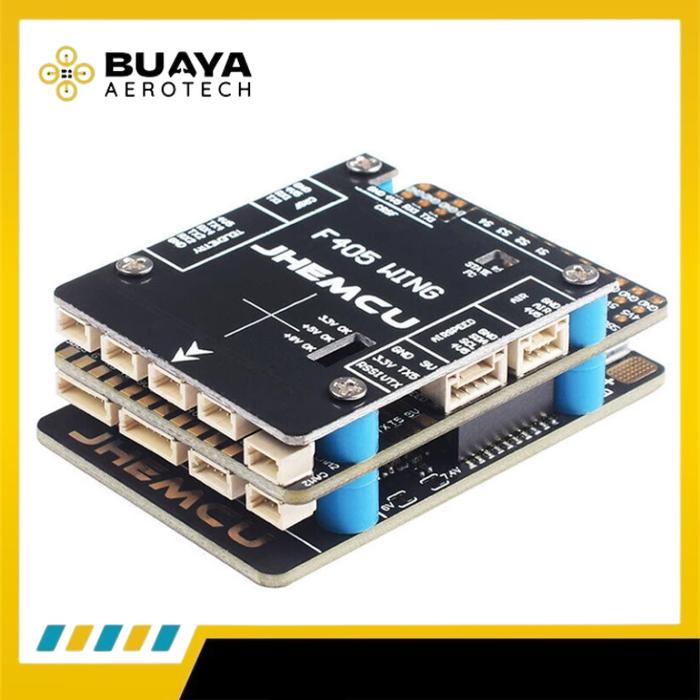

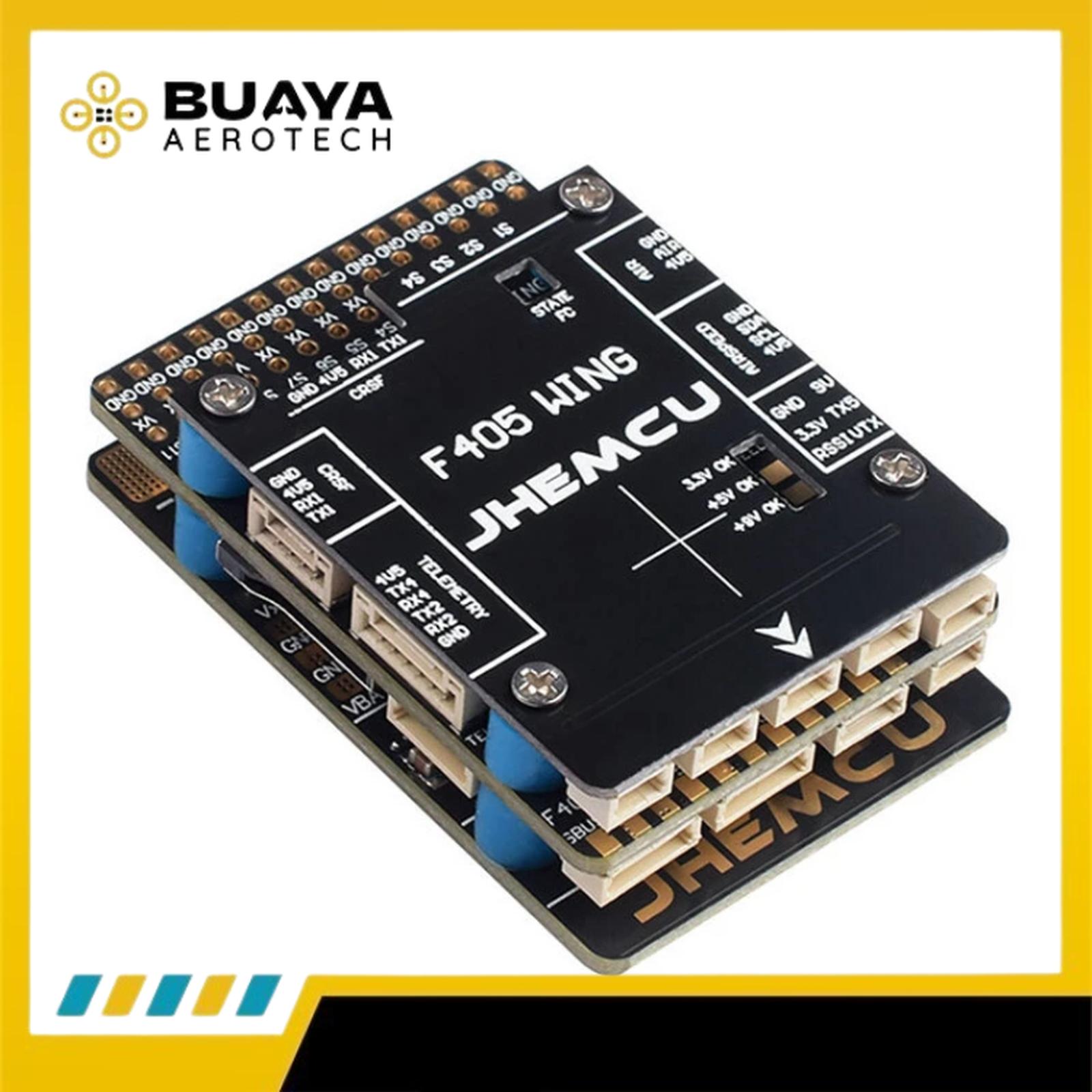

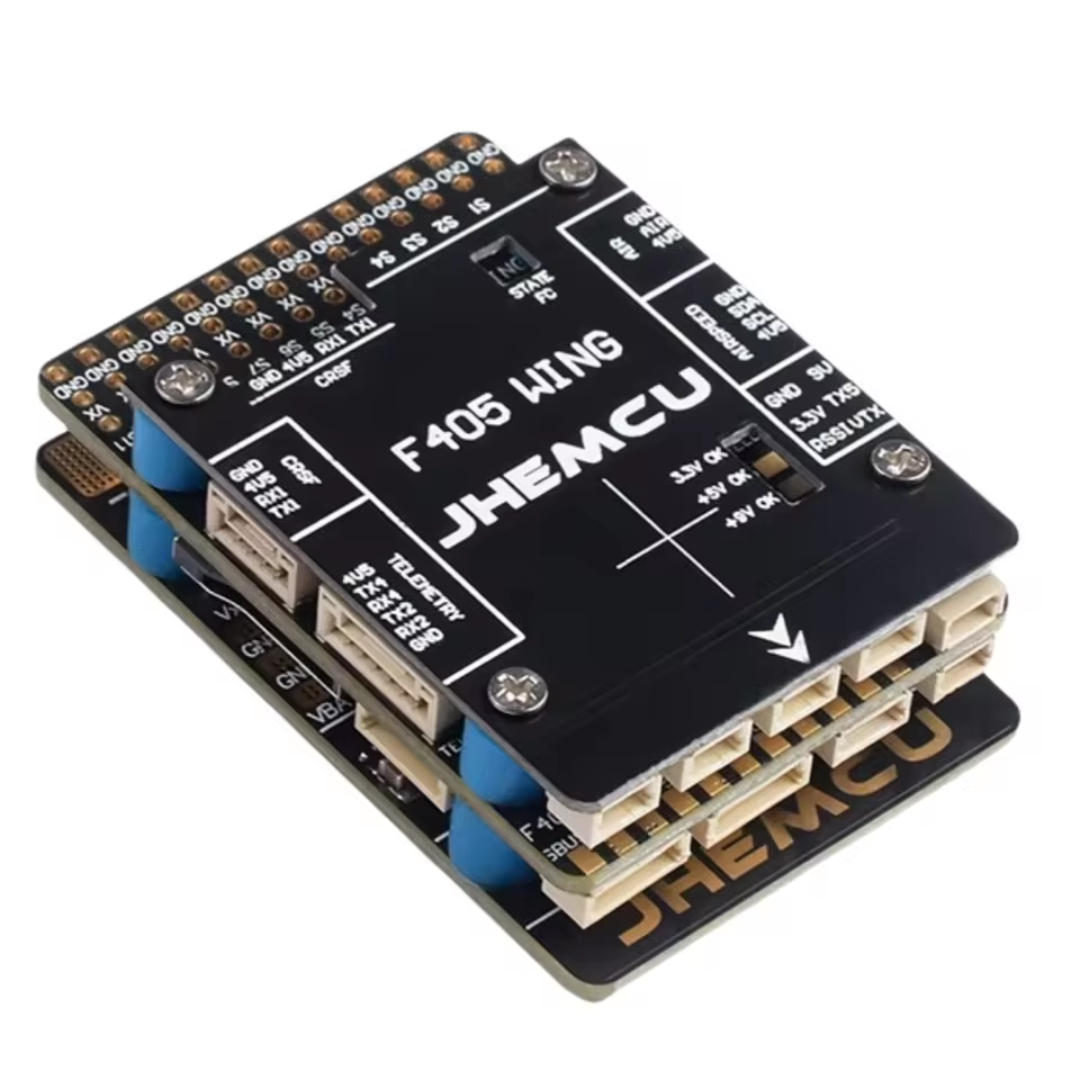

The JHEMCU F405 Wing Flight Controller is designed for fixed-wing UAVs and long-range platforms running INAV or ArduPilot. Built around the powerful STM32F405 processor, it provides fast and reliable flight control while integrating key sensors and power management required for modern autonomous aircraft.
The board features the ICM-42688P gyro and accelerometer, a high-precision SPL-06 barometer, and a built-in voltage and current sensor capable of monitoring up to 90A continuous (215A peak). Combined with microSD blackbox logging, this makes the controller ideal for advanced navigation, telemetry, and flight analysis.
Connectivity is a key strength of this controller. With five external UARTs, I2C support, 12 PWM outputs, and a dedicated microSD card slot, the board can easily support GPS modules, telemetry radios, HD or analogue video transmitters, airspeed sensors, and other peripherals required for sophisticated fixed-wing builds.
A range of integrated BEC power outputs simplifies wiring and reduces the need for external regulators. Dedicated regulated outputs are provided for servos, flight controller peripherals, and video transmitters, including a high-current configurable servo BEC, allowing clean and stable power delivery throughout the aircraft.
The board also includes an AT7456E OSD chip, enabling on-screen telemetry for analogue video systems, while still supporting DisplayPort OSD for digital HD systems via UART.
Compact, capable, and highly configurable, the JHEMCU F405 Wing is an excellent choice for pilots building advanced fixed-wing aircraft, long-range platforms, and autonomous UAV systems.
Fully supported by ArduPilot (Plane/VTOL) and INAV (5.0+).
Note: Supplied with header pins unsoldered.
Ardupilot
Key Features
* Powerful STM32F405RGT6 168MHz processor
* ICM-42688P IMU for accurate gyro and accelerometer data
* SPL-06 barometer for altitude measurement
* Built-in voltage and current sensor for power monitoring
* AT7456E OSD for analogue video telemetry
* DisplayPort OSD support for HD digital VTX systems
* microSD Blackbox logging for flight data analysis
* 12 PWM outputs supporting DShot
* 5 UARTs + USB for GPS, telemetry, receivers and peripherals
* I2C interface for compass, airspeed sensor and additional devices
* External compass support via I2C
* GPIO-controlled VTX power switching
* Dual camera input switching support
* Multiple integrated BEC regulators for servos, VTX and peripherals
* USB-C connection for configuration and firmware updates
* JHEMCUF405WING wiring
Spesification:
* Processor
STM32F405RGT6 ARM Cortex-M4 – 168MHz
* Sensors
ICM-42688P IMU (Gyroscope + Accelerometer)
SPL-06 Barometer
* OSD
AT7456E OSD
* Power Input
2–6S LiPo
* Current Sensor
90A continuous
215A peak
* BEC Outputs
Video Transmitter BEC:
9V / 12V / 5V selectable – 1.8A
* Servo BEC:
4.9V / 6V / 7.2V selectable – 4.5A
* Peripheral BEC:
5V – 2.4A
* Interfaces
12 × PWM outputs (DShot supported)
1 × RC input
5 × UARTs for GPS, telemetry, receivers, peripherals
1 × internal UART (wireless module)
I2C port (compass / airspeed sensor)
USB-C port
microSD Blackbox logging
