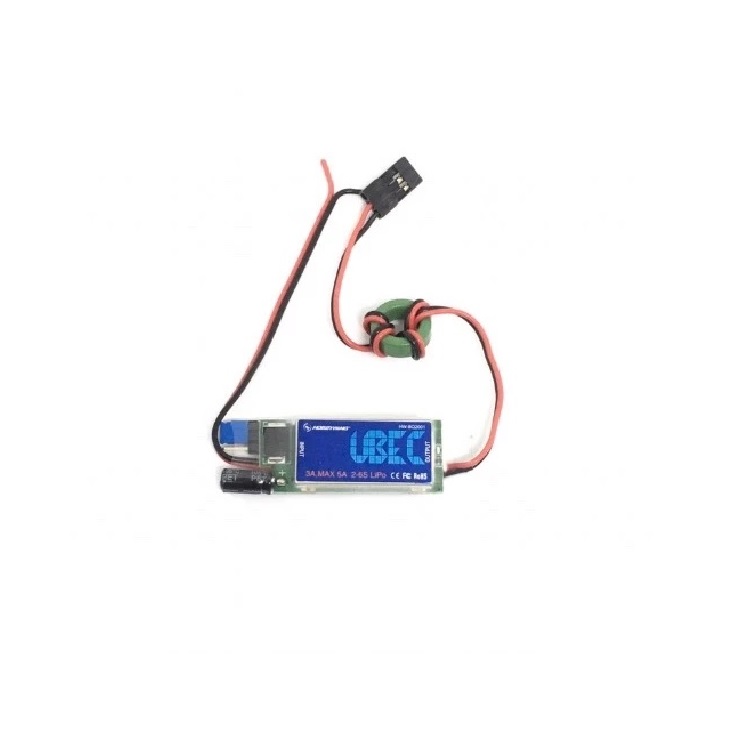

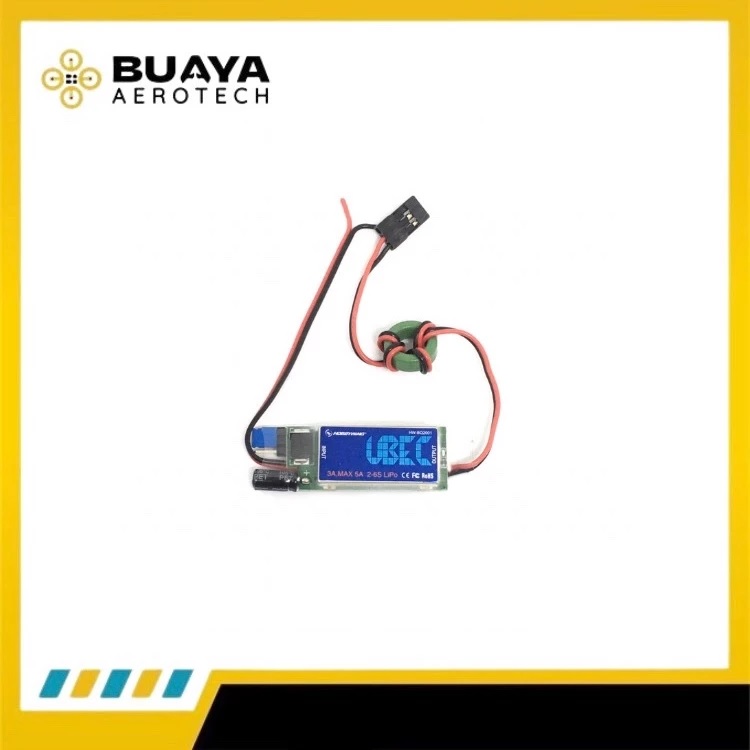

Hobbywing Ubec 3A 5V

UBEC-3A merupakan regulator DC to DC, disuplai oleh baterai lithium 2-6 sel (atau baterai 5-18 sel NiMH/NiCd ). UBEC ini mengeluarkan ouput yang konsisten untuk receiver, gyro dan servo anda. Sangat cocok dengan helicopter RC. Dibandingkan dengan UBEC mode linear, UBEC mode switch ini memiliki efisiensi yang lebih tinggi.

Fitur:
– Advanced switch mode DC-DC regulator IC.
– Powerful output even working with 4 to 6 cells Lipo battery.
– Battery polarity reversal protection.
– A metal shield covers almost all the electronic components.
– The working status is shown by an indicator (LED).

Spesifikasi:
– Output Voltage:5V/3A or 6V/3A (Changeable with an output-voltage select switch )
– Continuous output current: 3 Amps
– Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)
– Size: 43mm*17mm*7mm (L*W*H)
– Weight: 11g
Package Included:

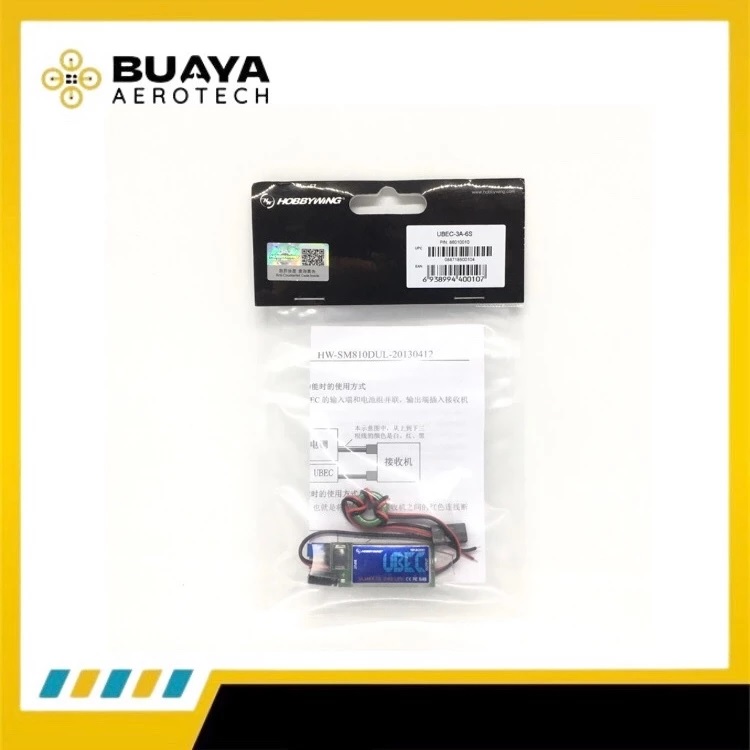

1X Hobbywing 5V/6V 3A Switch-Mode Ultimate BEC (UBEC)
