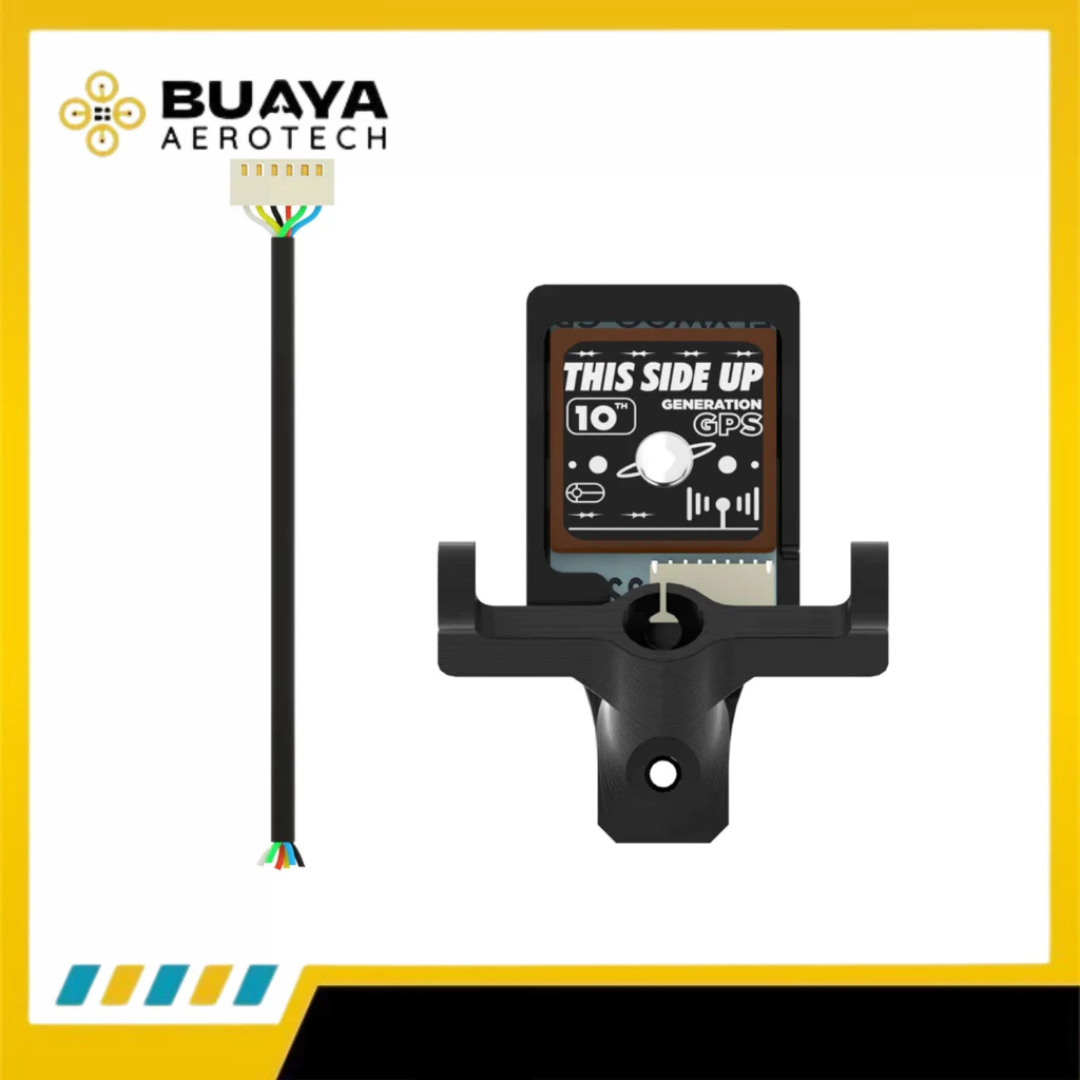

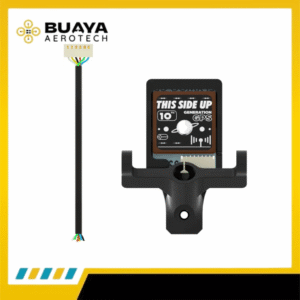

FlyLens 85 GM10 Nano Compass GPS with TPU Mount

GPS Description
– Brand : FLYWOO
– Model : GM10 NANO V3 GPS

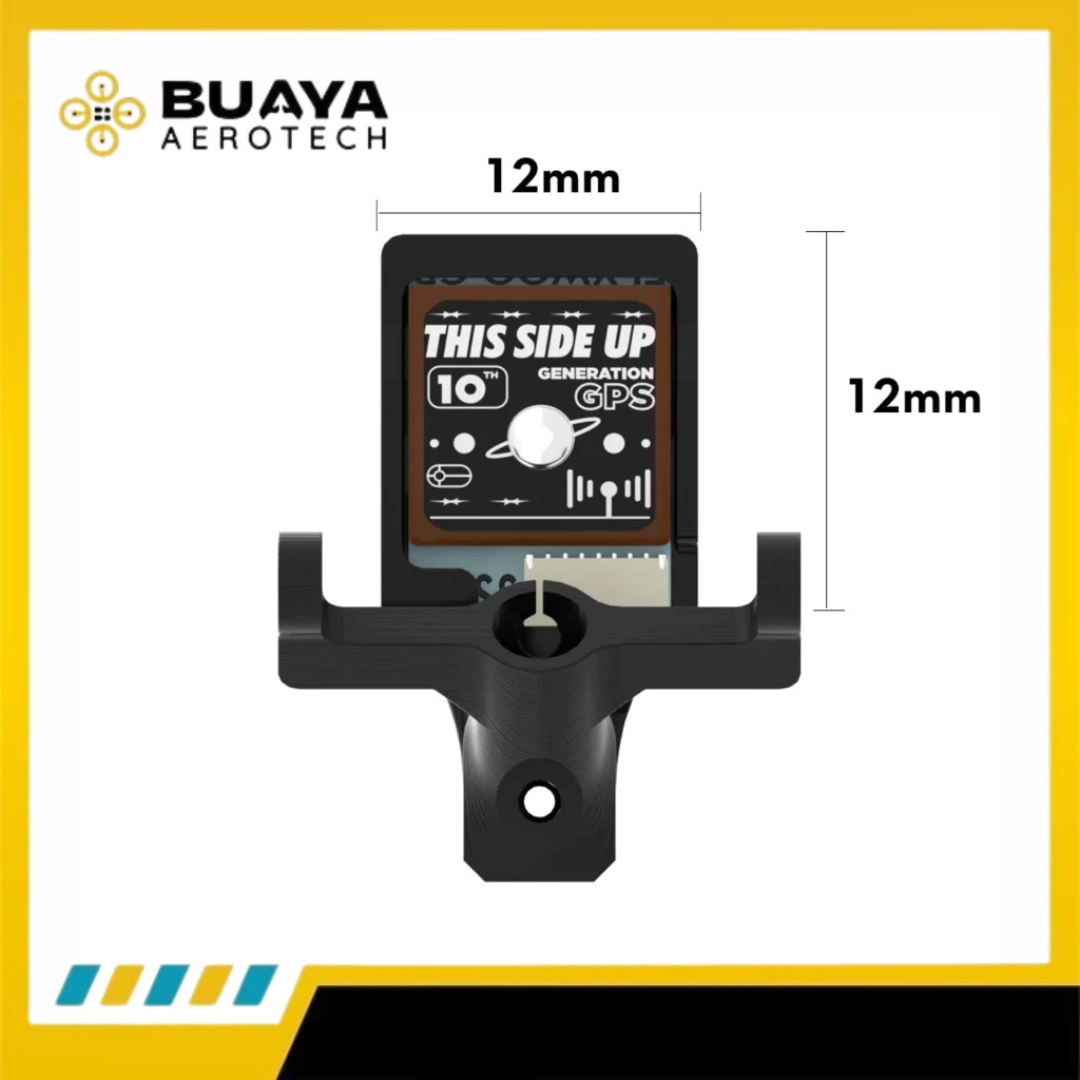

– Dimension : 12mm*17mm*5mm
– Weight : 2.6g
– Connector : 4pins Pad

Gps Features:
– GPS Module. Three Modules.
– 4pins Pad, ultra light weight
– With a compass and a plug.
– Plug and play, no need for soldering.

GPS Specification
– Chipset : M10050(Tenth Generation Chip)
– Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
– Default Protocol : GPS,Galileo,BeiDou
– Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
– Channels : 72 Searching Channel

GPS Sensitivity
– Tracking : -162dBm
– Reacquisition : -160dBm

GPS Data and Update Rate
– Support Rate : 4800bps to 921600bps,Default 115200bps
– Data Level : TTL or RS-232,Default TTL level
– Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
– Output frequency : 1Hz-10Hz，Default 10Hz

GPS Operational Limits
– Altitude : 50,000m Max
– Velocity : 500m/s Max
– Acceleration : Less than 4g

GPS Power consumption
– VCC : DC Voltage ：3.3-5V
– Operating temp :　-40 °C ~ +85°C
– Storage Temp : -40°C ~ +105°C

GPS Indicator
– PPS LED : Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.

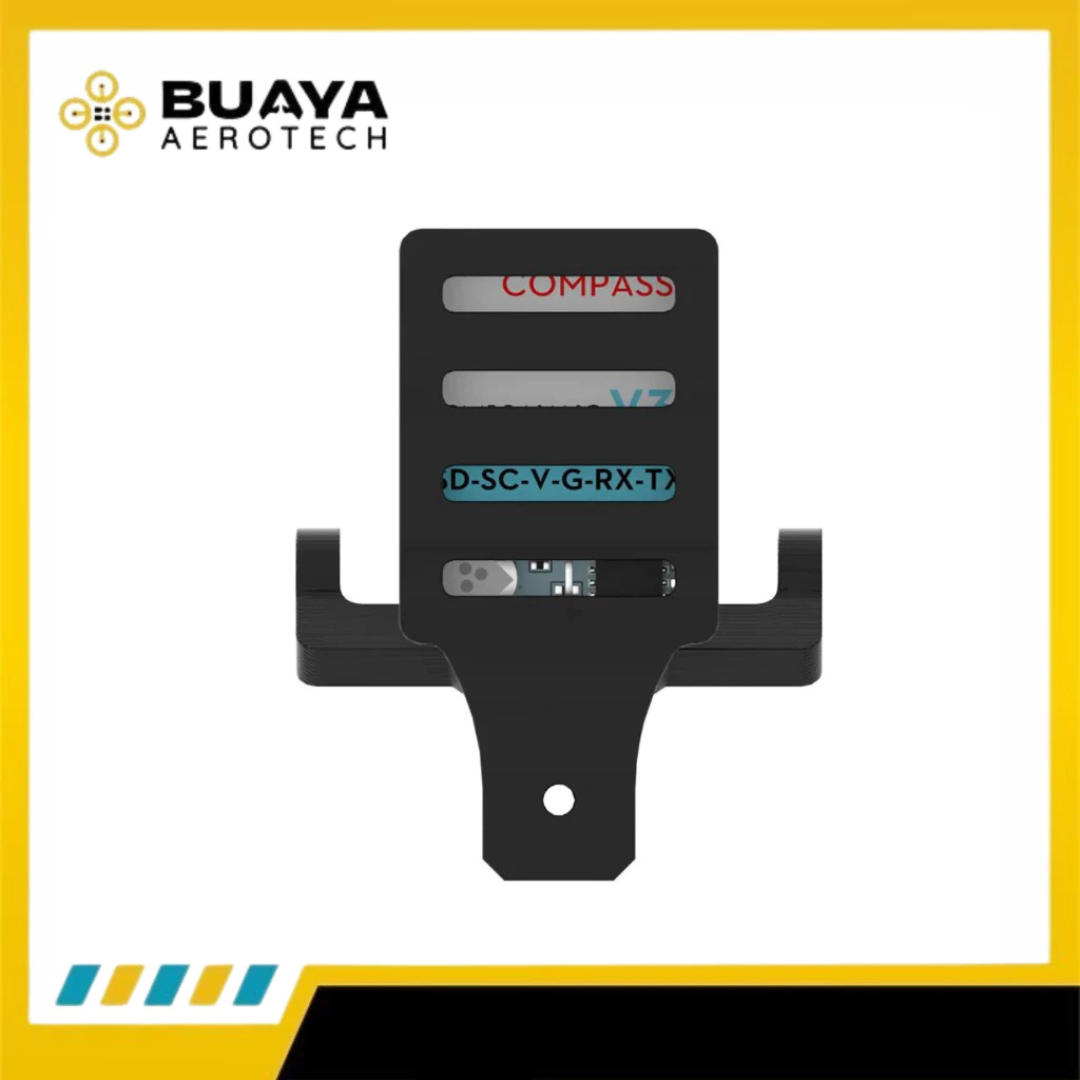

– The Module’s Pins: RX TX 3.3-5V GND
