Specifications:
Flight Controller:

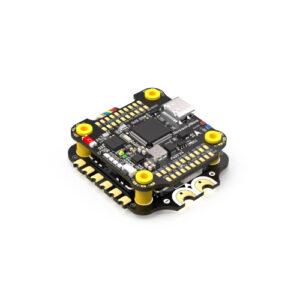

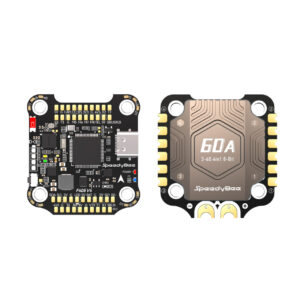

* Product Name: SpeedyBee F405 V4 30×30 Flight Controller
* MCU: STM32F405
* IMU(Gyro): ICM42688P
* USB Port Type: Type-C
* Barometer: Built-in
* OSD Chip: AT7456E chip
* BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
* WIFI: Not supported
* DJI Air Unit Connection Way; Two ways supported: 6-pin connector or direct soldering.
* 6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1
* Blackbox MicroSD Card Slot: *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported (Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format.
* Current Sensor Input: Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.
* Power Input: 3S – 6S Lipo
* 5V Output: 9 groups of 5V output,
* 9V Output: 2 groups of 9V output,
* 3.3V Output: Supported.
* 4.5V Output: Supported.
* ESC Signal: M1 – M4 on bottom side and M5-M8 on front side.
* UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5 (Dedicated for ESC telemetry),UART6
* ESCTelemetry: UART R5
* I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
* Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
* Buzzer: BZ+ and BZ- pad used for 5V Buzzer
* BOOT Button: Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
* RSSI Input: Supported. Named as RS on the front side.
* Smart Port / F.Port: Not supported
* Supported Flight Controller Firmware: BetaFlight(Default), INAV
* Firmware Target Name: SPEEDYBEEF405V4
* Mounting: 30.5 x 30.5mm M4
* Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
* Weight: 10.5g
ESC (Electronic Speed Control):
* Product Name; SpeedyBee BLS 60A 30×30 4-in-1 ESC
* Firmware: BLHeli_S J-H-40
* Continuous Current: 60A * 4
* Burst Current: 80A(10 sec)
* TVS Protective diode; Yes
* External Capacitor: 1000uF Low ESR Capacitor
* ESC Protocol: DSHOT300/600
* Power Input: 3-6S LiPo
* Power Output: VBAT
* Current Sensor: Support (Scale=400 Offset=0)
* ESC Telemetry: Not supported
* Mounting: 30.5 x 30.5mm M4
* Dimension: 45.6(L) * 44(W) *8mm(H)
* Weight; 23.5g
