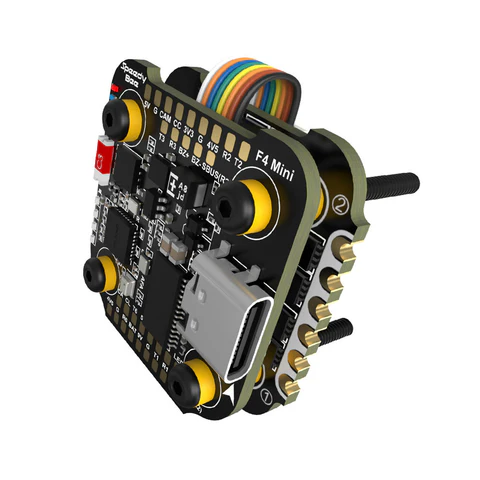

Specifications

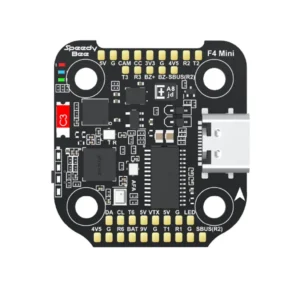

Flight Controller:
* ProductName: SpeedyBee F405 Mini Flight Controller
* MCU: STM32F405
* IMU(Gyro): ICM42688P
* USB Port Type: Type-C
* Barometer: Built-in
* OSD Chip: AT7456E chip
* BLE Bluetooth: Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
* Wireless FC Firmware Flashing, Wireless Blackbox Dwonload & Analysis : NOT Supported.
* DJI Air Unit Connection Way: Direct soldering
* DJI Air Unit Compatibility: Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1. Please use the solder pads < 9V, G, T1, R1, G, SUBS(R2) > on the front right corner of the flight controller to make a pin-to-pin connection with the solder pads on the DJI Air Unit. UART1(T1, R1) is used for OSD and SUBS(R2) is used for DJI Air Unit’s internal SBUS receiver signal input.
* Blackbox: 8MB Onboard Flash
* BetaFlight Camera Control Pad: Yes(CC pad on the front side)
* Current Sensor Input: Supported. For SpeedyBee BLS 35A V2 ESC, please set Scale=250 and Offset=-500.
* Power Input: 3-6S LiPo.
* ESC Signal: M1 – M4 wires or soldering pads on bottom side.
* UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
* ESCTelemetry: UART R5(UART5)
* I2C: Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc
* Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LEDs controlled by the Betaflight firmware.
* Buzzer: BZ+ and BZ- pad used for 5V Buzzer
* BOOT Button: Supported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
* RSSI Input: Not Supported
* Smart Port / F.Port: Not Supported
* Supported Flight Controller Firmware: BetaFlight(Default), INAV
* Firmware Target Name: SPEEDYBEEF405MINI
* Mounting: 20 x 20mm 3.5mm hole diameter ，Compatible with M2 and M3 screws/Silicone grommets.
* Dimension: 30(L) x 32(W) x 7.8(H)mm
* Weight: 9.6g
ESC (Electronic Speed Control):
* ProductName: SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
* Firmware: BLHeli_S J-H-40
* Continuous Current: 35A * 4
* Burst Current: 45A(5seconds)
* ESC Protocol: DSHOT300/600
* Power Input: 3-6S LiPo
* Power Output: VBAT(Battery voltage, used to power the flight controller)
* Current Sensor: Support (Scale=250 Offset=-500)
* ESC Telemetry: Not supported
* Mounting: 20 x 20mm ∅3.5mm hole size，compatible with M2 and M3 screws/Silicone grommets.
* Dimension: 35 * 35 * 5.5mm
* Weight: 7.2g
