Spesification:
Flight Controller
* Product Name: SpeedyBee F405 AIO
* MCU: STM32F405
* Gyro: ICM-42688P
* USB Port Type: Type-C
* Barometer: SPA06-003
* OSD: Supported
* Bluetooth BLE: Supported, Bluetooth speed enhancement – 2.0
* Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
* Wireless Download & BlackBox Analysis: Not supported
* DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
* 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
* Flash (for BlackBox): 8MB
* Betaflight CC Pads (Camera Parameter Adjustment): Supported
* Input Voltage: 3S-6S LiPo battery
* 4V5 Output: Two 4V5 outputs; total current 1A
* 5V BEC Output: Three 5V outputs; total current 2A; shared with 4V5
* 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
* MOTOR: M1-M4
* UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
* ESC Telemetry: None
* I2C: Supported
* LED Pads: Supported, used to control WS2812 LED lights
* Buzzer Pads: Supported, BZ+ and BZ- pads
* BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
* RSSI Pads: None
* SmartPort: Not supported
* Supported Flight Controller Firmware: BetaFlight (Default), INAV
* Firmware Target Name: SPEEDYBEE F405AIO

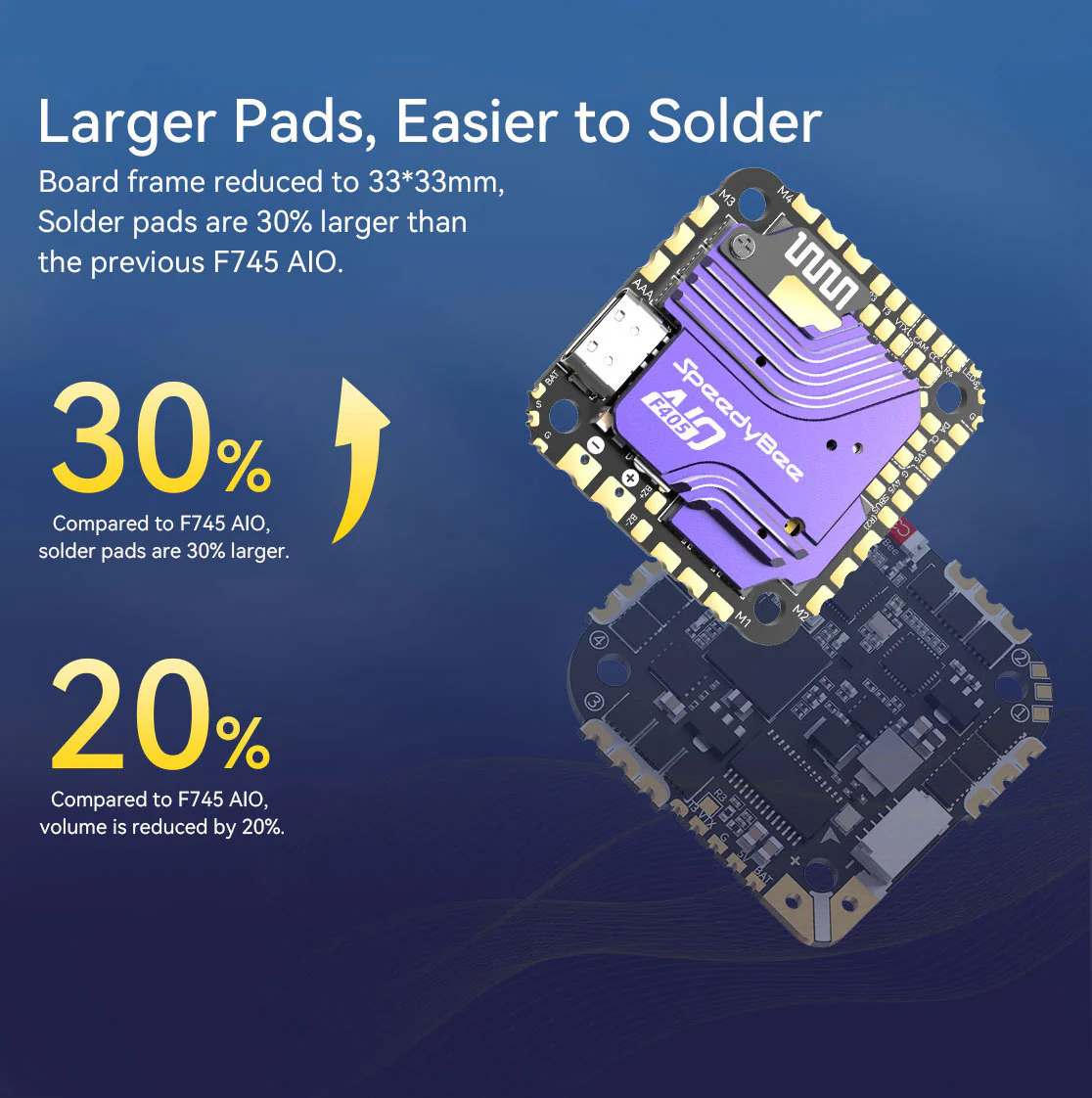

* Mounting: 25.5 x 25.5mm, 2mm hole diameter
* Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)
* Weight: 13.6g (including CNC)
ESC (Electronic Speed Control):
* Product Name: SpeedyBee F405 AIO
* Input Voltage: 3-6S LiPo battery
* Continuous Current: 40A
* Burst Current: 45A (10s)
* ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
* Output Voltage: VBAT battery voltage (used to power the flight controller)
* Current Sensor: Supported (Scale = 254, Offset = 0)
* Firmware: Bluejay JH-40 48kHz
