Radio Telemetry Kit 433Mhz 100mW

3DR 433Mhz Radio Telemetry ground Station Pixhawk APM Flight Control

– The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. It s availabl in 433Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).

– Very small size
– Light weight (under 4 grams without antenna)
– 433-434.79MHz
– Receiver sensitivity to -121 dBm
– Transmit power up to 20dBm (100mW)
– Transparent serial link
– Air data rates up to 250kbps
– MAVLink protocol framing and status reporting
– Frequency hopping spread spectrum (FHSS)
– Adaptive time division multiplexing (TDM)
– Support for LBT and AFA
– Configurable duty cycle
– Built in error correcting code (can correct up to 25% data bit errors)
– Demonstrated range of several kilometers with a small omni antenna
– Can be used with a bi-directional amplifier for even more range
– Open source firmware
– AT commands for radio configuration
– RT commands for remote radio configuration
– Adaptive flow control when used with APM
– Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module

Support OTG of Android Cellphones,and computer OTG. Antenna is 5.8G level ,not the cheap 2.4G level (whose range is very small and material is very cheap)

When you receive the telemetry and case,please remove the Protective film when you install to the case if it is not easy to install it.

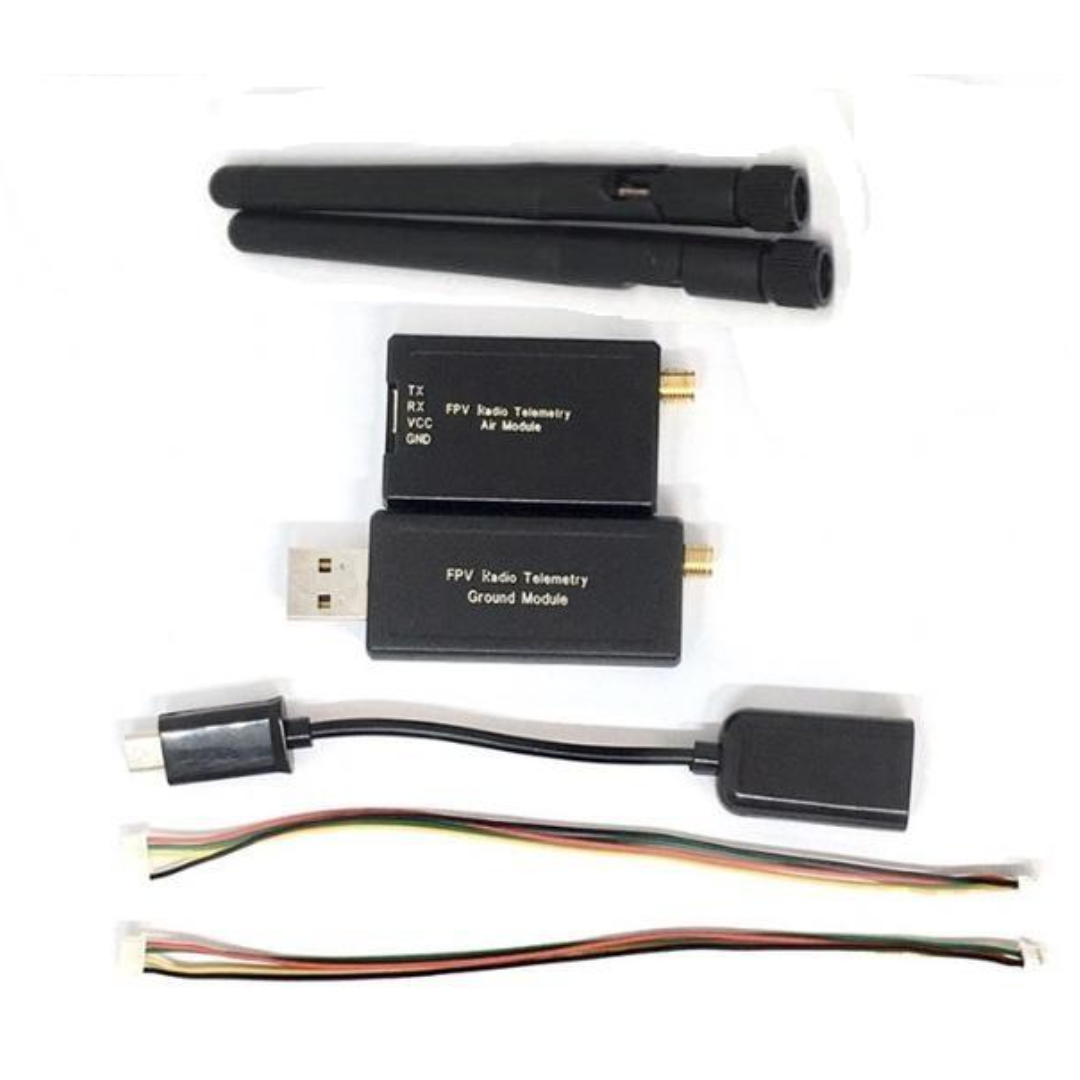

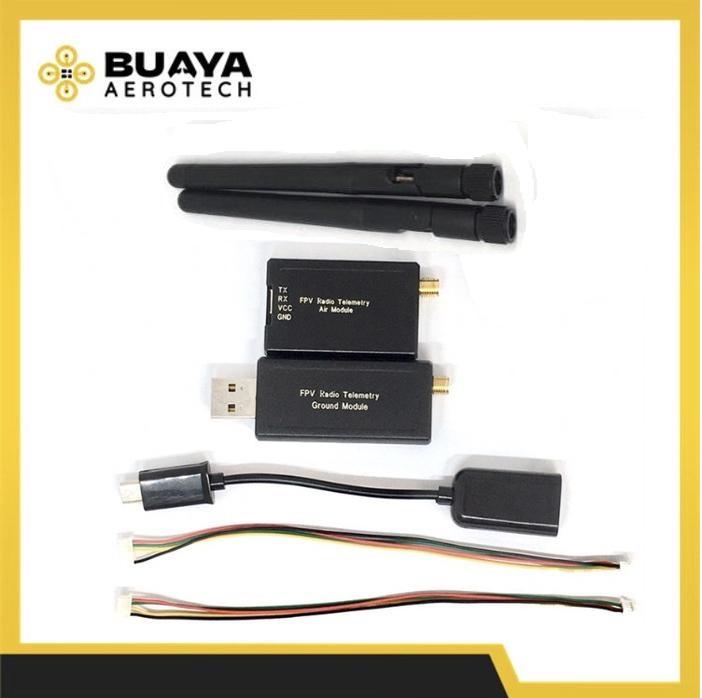

Isi Paket:
– Telemetry module *2
– Antenna *2
– 5P-6P serial cable *1 for APM
– 6P-6P serial cable *1 for Pixhawk
– Case *2
