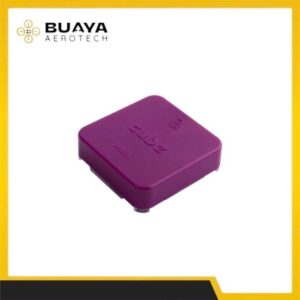

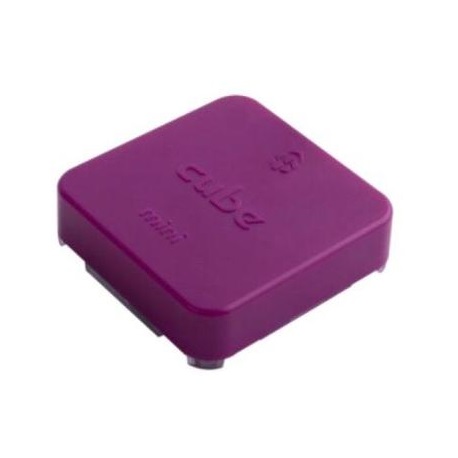

Hex Cube Purple (also known as Cube Mini) is an autopilot system designed specifically for land-based applications such as boats, cars, or rovers. This flight controller is based on the original Pixhawk 2.1 Cube Black main module, featuring an F4 chip, but offers a smaller platform suitable for situations where sensor redundancy isn’t necessary. The Cube Purple Set, which includes a Mini Carrier board, serves as an optimal solution for compact drones. Moreover, it is compatible with both PX4 and APM firmware.
Features
80-pin DF17 connector
Built-in STM32F4 chip
Single Baro Sensor
Single IMU sensor
Specifications
PROCESSOR
32-bit ARM Cortex M4 core with FPU
168 Mhz/256 KB RAM/2 MB Flash
32-bit failsafe co-processor
SENSORS
InvenSense MPU9250 (accel and gyro) * 1
IMU (accels, gyros, and compass) * 1
MS5611 barometers * 1
INSIDE THE CUBE
An STM32F100 I/O processor with pass-through capabilities for failsafe. (deals with the Receiver and outputs )
An STM32F427 Rev 3 Flight management unit. (where the flight controller lives.)
Includes
1x Hex Cube Purple
