Features
Equipped with STM32H757 high-performance processor in a real-time operating system. The framework developed by Hex provides additional stabilities. Supports future firmware updates.
Cost-efficient high precision and RTK-supported GNSS chip (base station needed for RTK). Positioning accuracy down to centimeter-level in an ideal environment.
Improved dust and water resistance (Not guaranteed to be water-proof under any situation due to the complexity of the operating environment).
Complete built-in set of Inertial Measurement Units (compass, gyroscope, and accelerometer), which satisfy advanced navigation needs.
The high data rate, upgradeability, noise immunity, and real-time features benefited from the CAN protocol.
Support from ground control software. Future updates will be available from Mission Planner.
Brand new design with improved visibility on signal LEDs.
iStand Included.
Specifications
Receiver Type: u-blox high precision GNSS modules (M8P-2)
Satellite Constellation:GPS L1C/A, GLONASS L1OF, BeiDou B1I
Positioning accuracy:3D FIX: 2.5 m / RTK: 0.025 m
Processor: STM32H757
IMU sensor: ICM42688,RM3100
Navigation Update Rate:8 hz
Communication Protocol:DroneCAN 8Mbit/s
Operating Temperature: -40℃ to 85℃
Dimension: 68mmx68mmx16mm
Weight: 51.8g
Includes

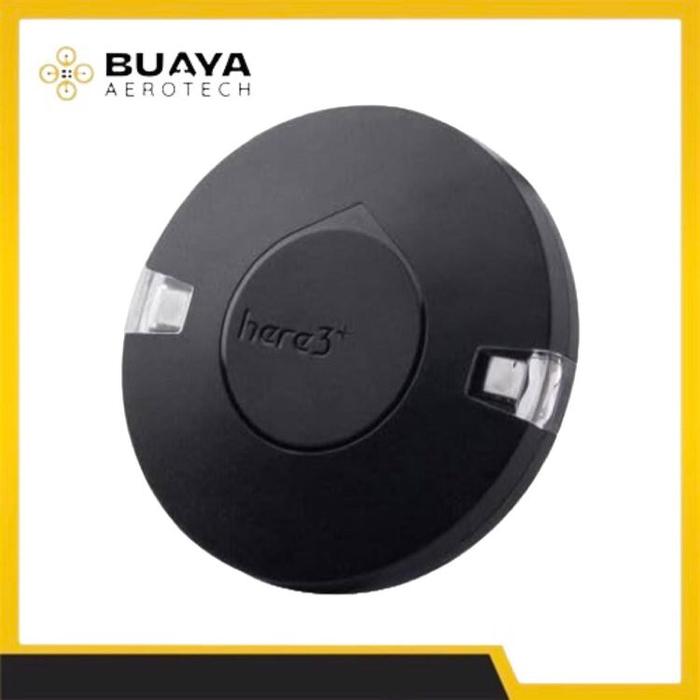

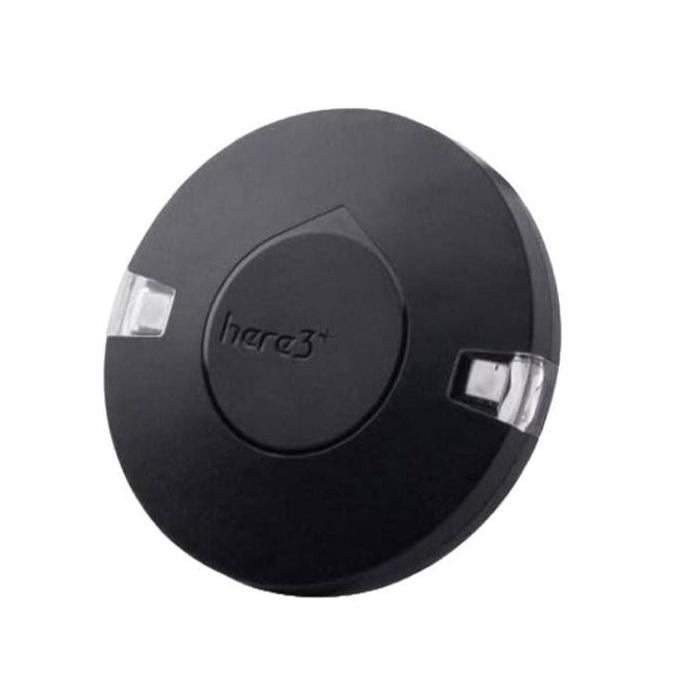

1x HEX Here3+ CAN GNSS GPS Module
1x Here3+ iStand
