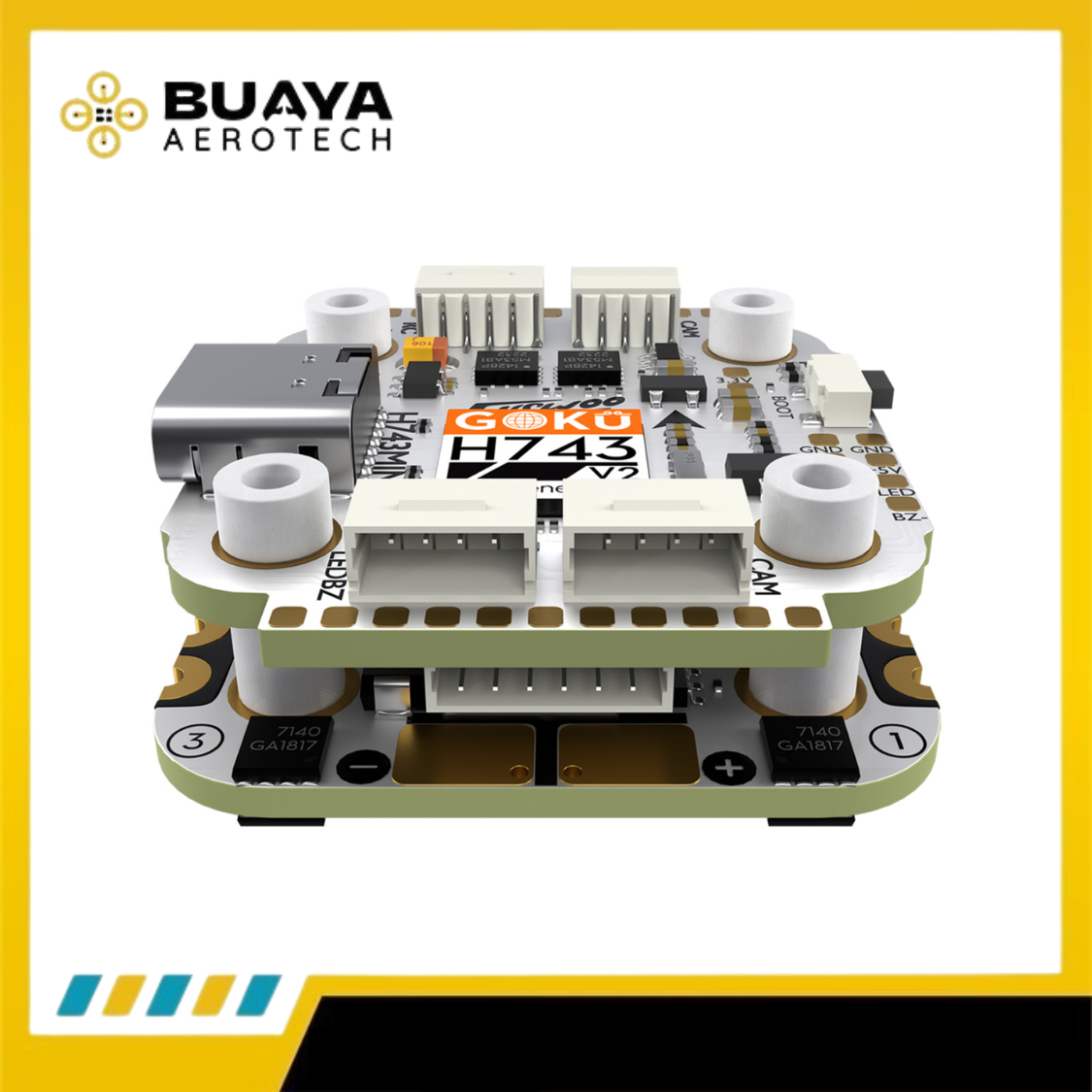

GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox , 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.
Highlights：
1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.

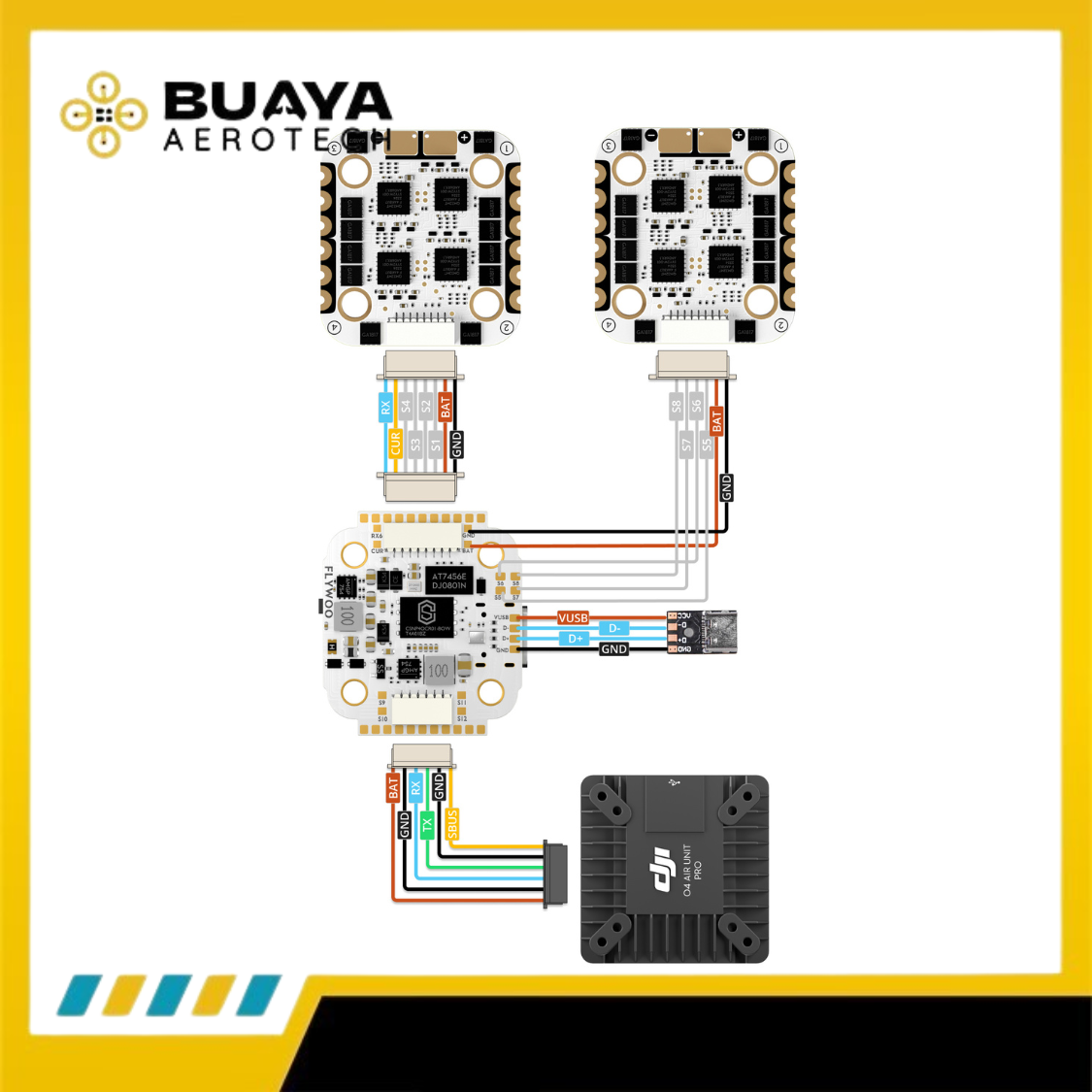

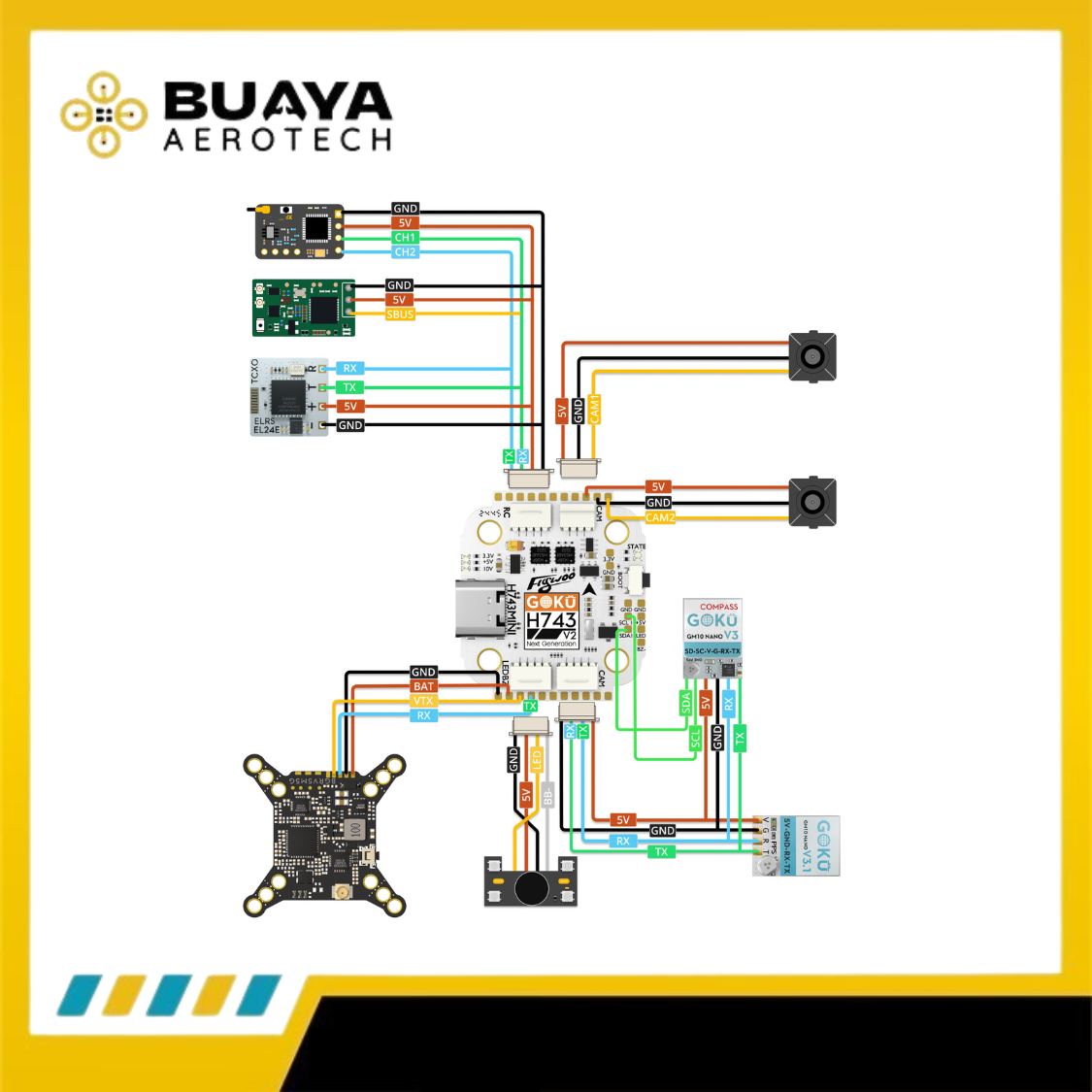

4. Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications：

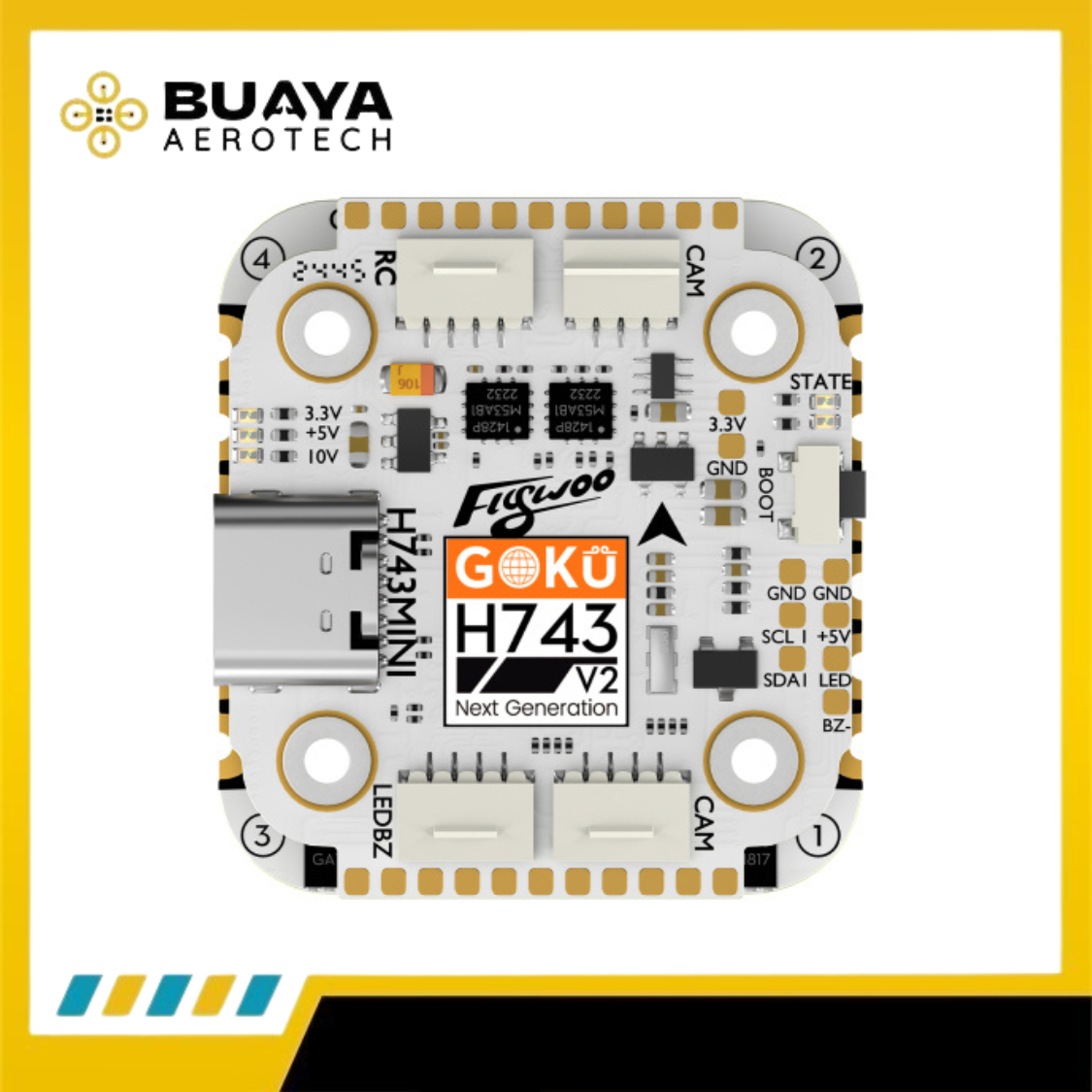

GOKU H743 PRO Mini Flight Controller
* BetaFlight Firmware: Flywoo H743PRO
* INAV Firmware: Flywoo H743PRO
* APM Firmware:Flywoo H743PRO
* Flash: 512MB
* MCU: STM32H743VIH6
* Gyroscope: ICM42688P*2
* OSD: AT7456E(LGA16)
* Barometer: DPS310/SPL06
* Black Box: 512MB
* UARTS: 1/2/3/4/6/7/8
* I2C:1
* PWM:12
* Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
* BEC: 10V2A/5V2A
* Camera support：CAM1,CAM2

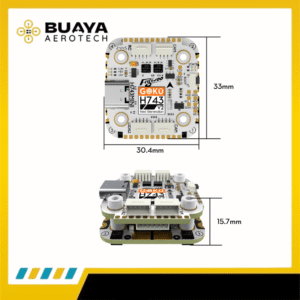

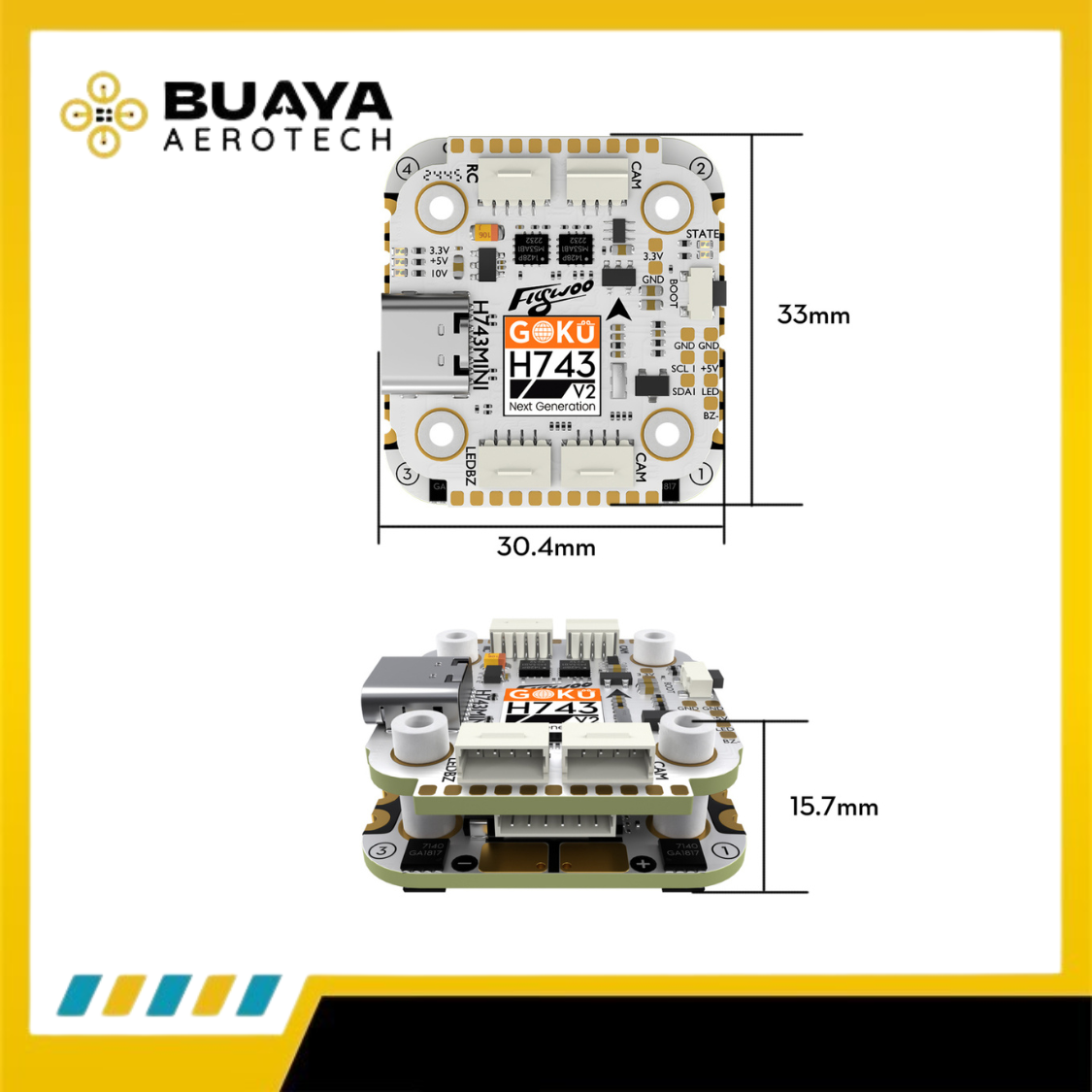

* Flight Controller Size: 32mm x 29mm x 8.4mm（Height including plug）
* Mounting Holes: M2 20x20mm
* Weight: 5.8g

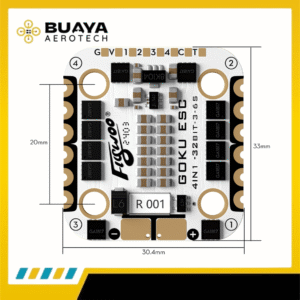

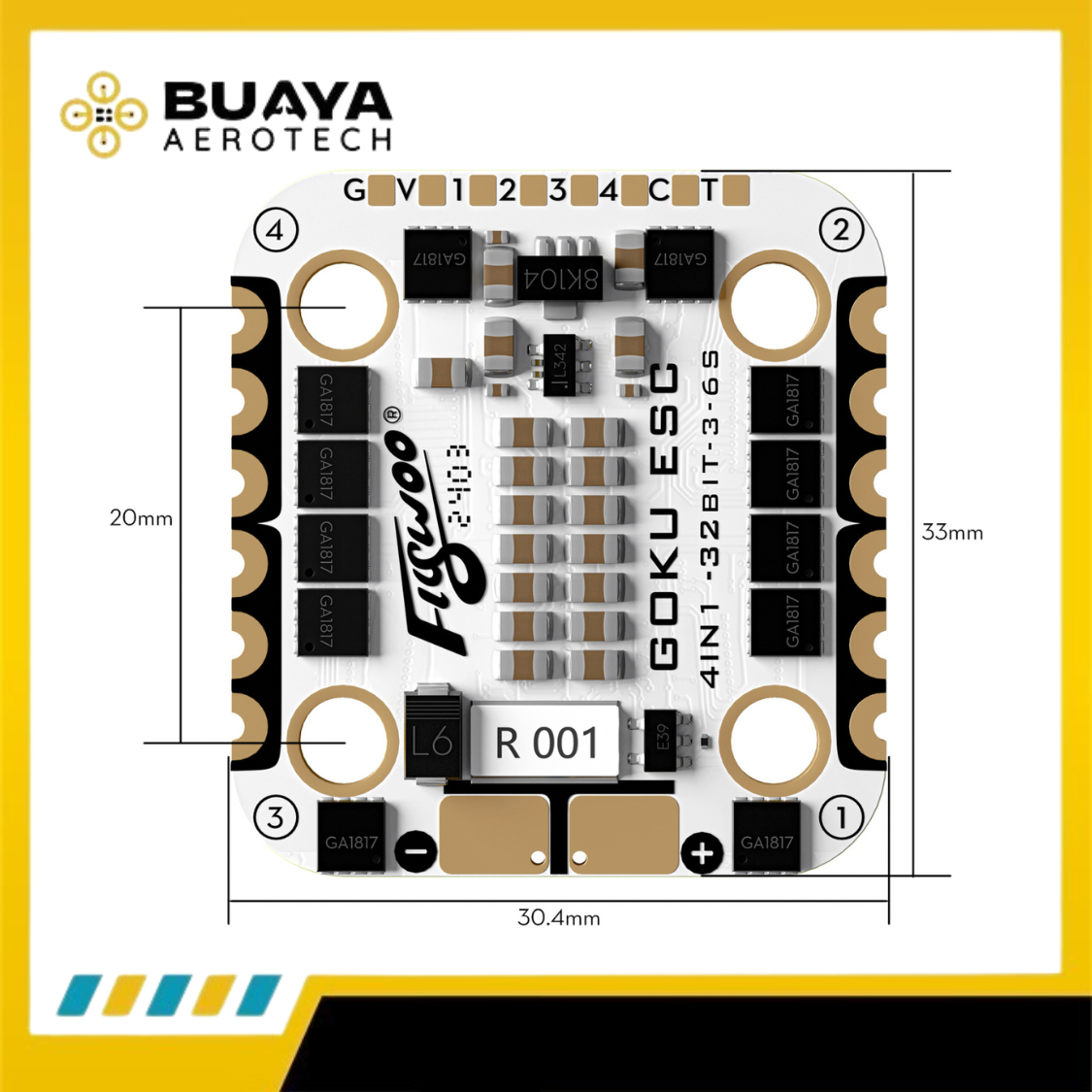

GOKU G45M BL32 / AM32 4in1 ESC
* Support BL32 / AM32
* Support Dshot300, Dshot600，Dshot1200
* PWM frequency: 24k-128k
* Input Voltage: 3-6S Lipo
* Continuous Current: 45A
* Firmware: – AM32：AT32DEVF421
– BL32 ： GOKU_F4A32_PRO
* Weight: 6.4g
In the Box
1 x FC&ESC Connection Cable
1 x DJI O4/O4P Connection Cable
1 x Buzzer Connection Cable
1 x Receiver Connection Cable
1 x GPS Connection Cable
2 x Camera Connection Cable
1 x XT30 Power Cable
5 x M3 Shock-Absorbing Ball
9 x M2 Shock-Absorbing Ball
1 x Capacitors
5 x Anti-Slip Nuts
