Specifications：

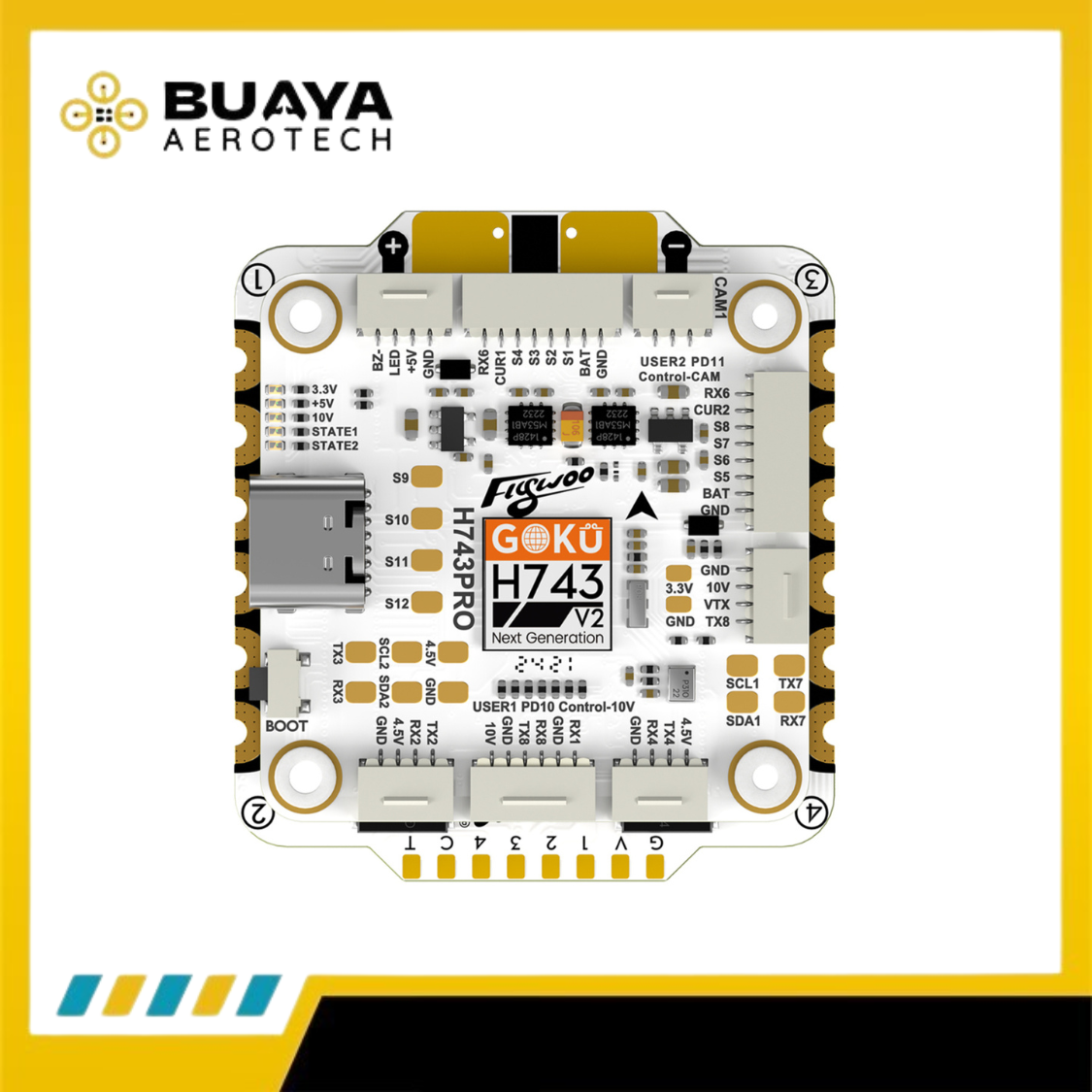

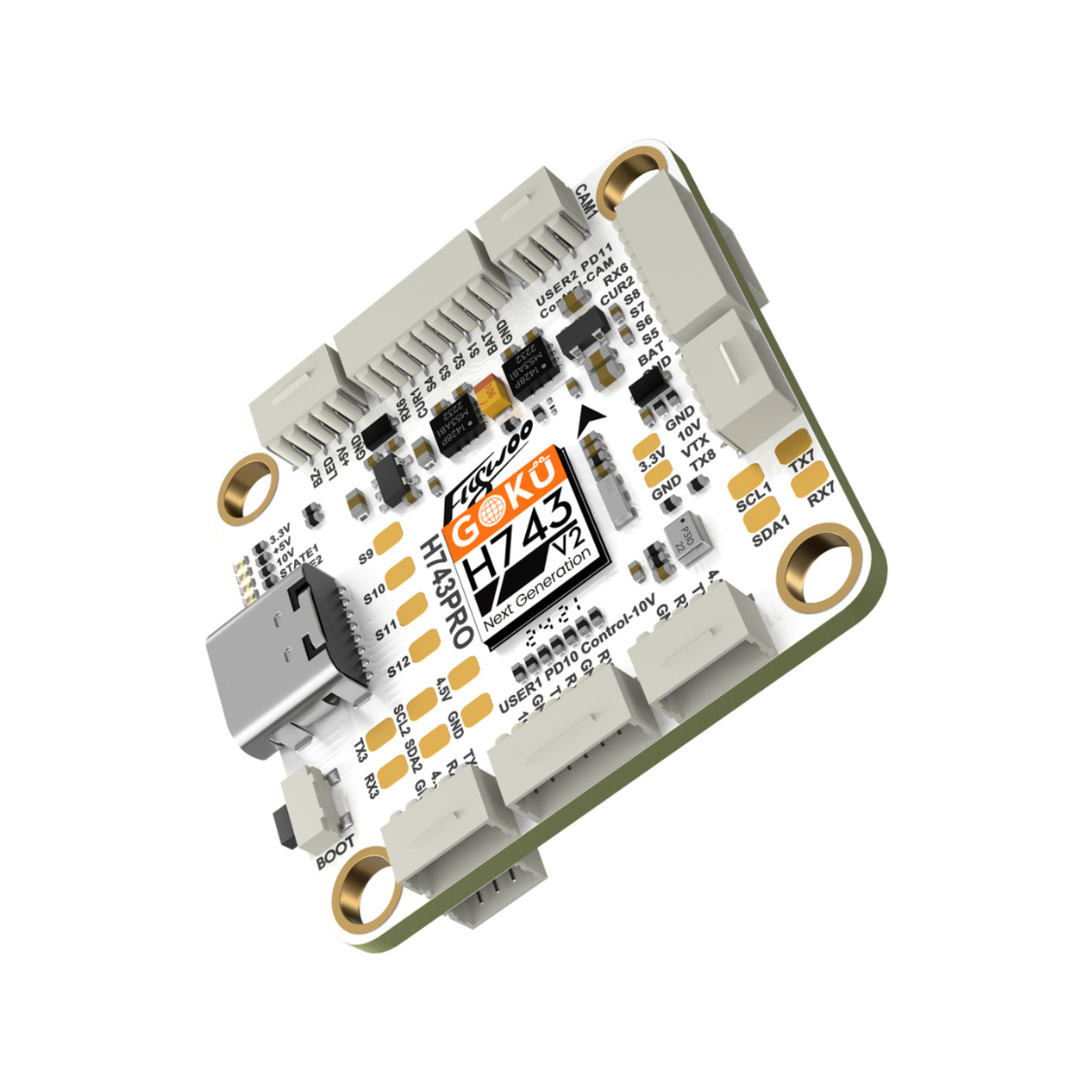

GOKU H743 PRO Flight Controller
* BetaFlight Firmware: Flywoo H743PRO
* INAV Firmware: Flywoo H743PRO
* APM Firmware:Flywoo H743PRO
* Flash: 512MB
* MCU: STM32H743VIH6
* Gyroscope: ICM42688P*2
* OSD: AT7456E(LGA16)
* Barometer: DPS310/SPL06
* Black Box: 512MB
* UARTS: 1/2/3/4/6/7/8
* I2C:2
* PWM:12
* Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
* BEC: 10V3A/5V3A
* Camera support：CAM1,CAM2
* Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
* Mounting Holes: M3 30x30mm

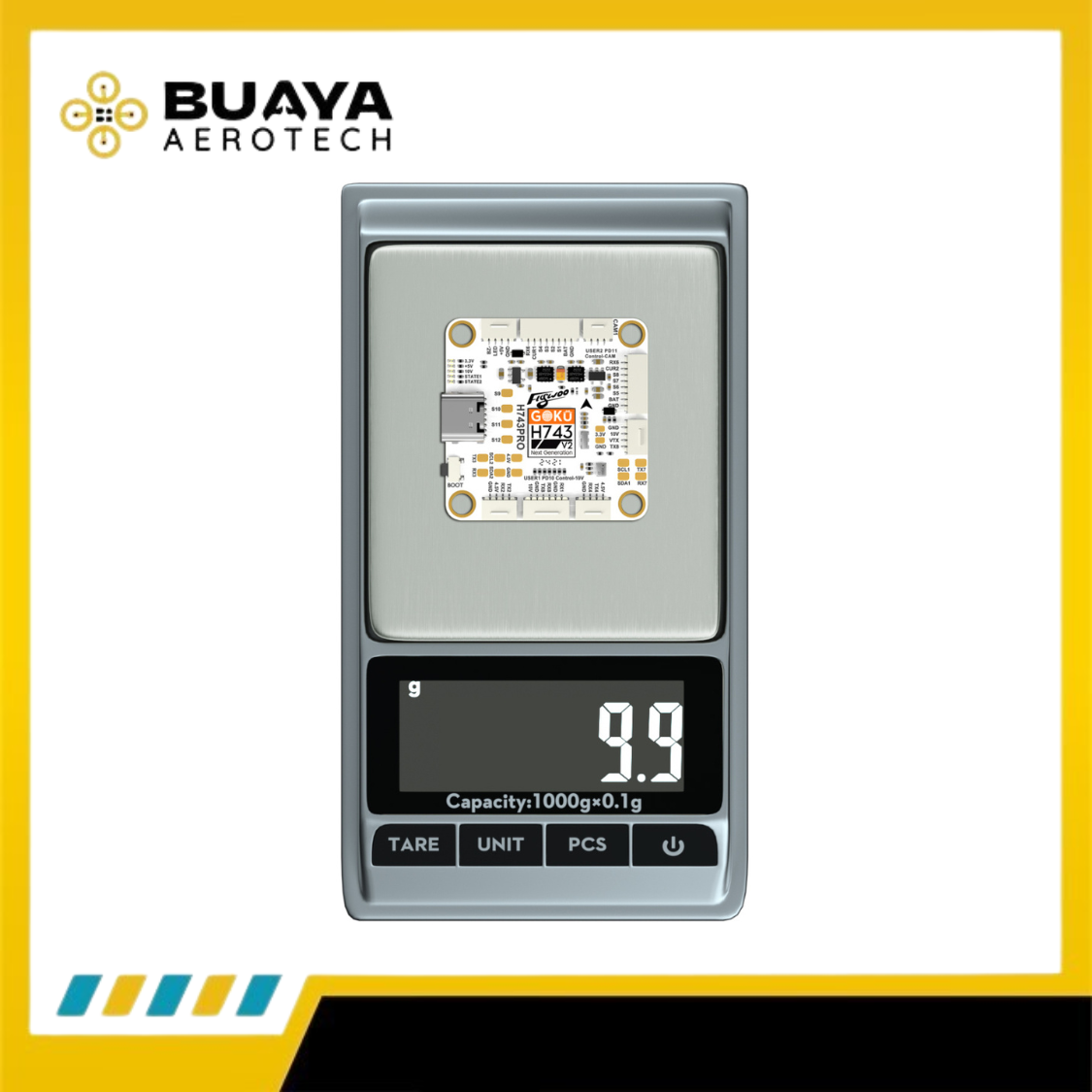

* Weight: 9.9g
In the Box
1 x FC&ESC Connection Cable
1 x DJI O4/O4P Connection Cable
1 x Buzzer Connection Cable
1 x Receiver Connection Cable
1 x GPS Connection Cable
2 x Camera Connection Cable
1 x Analog VTX Connection cable
1 x XT60 Power Cable
9 x M3 Shock-Absorbing Ball
5 x M3 Rubber Ring
1 x Capacitors
5 x Nylon studs
5 x Anti-Slip Nuts
