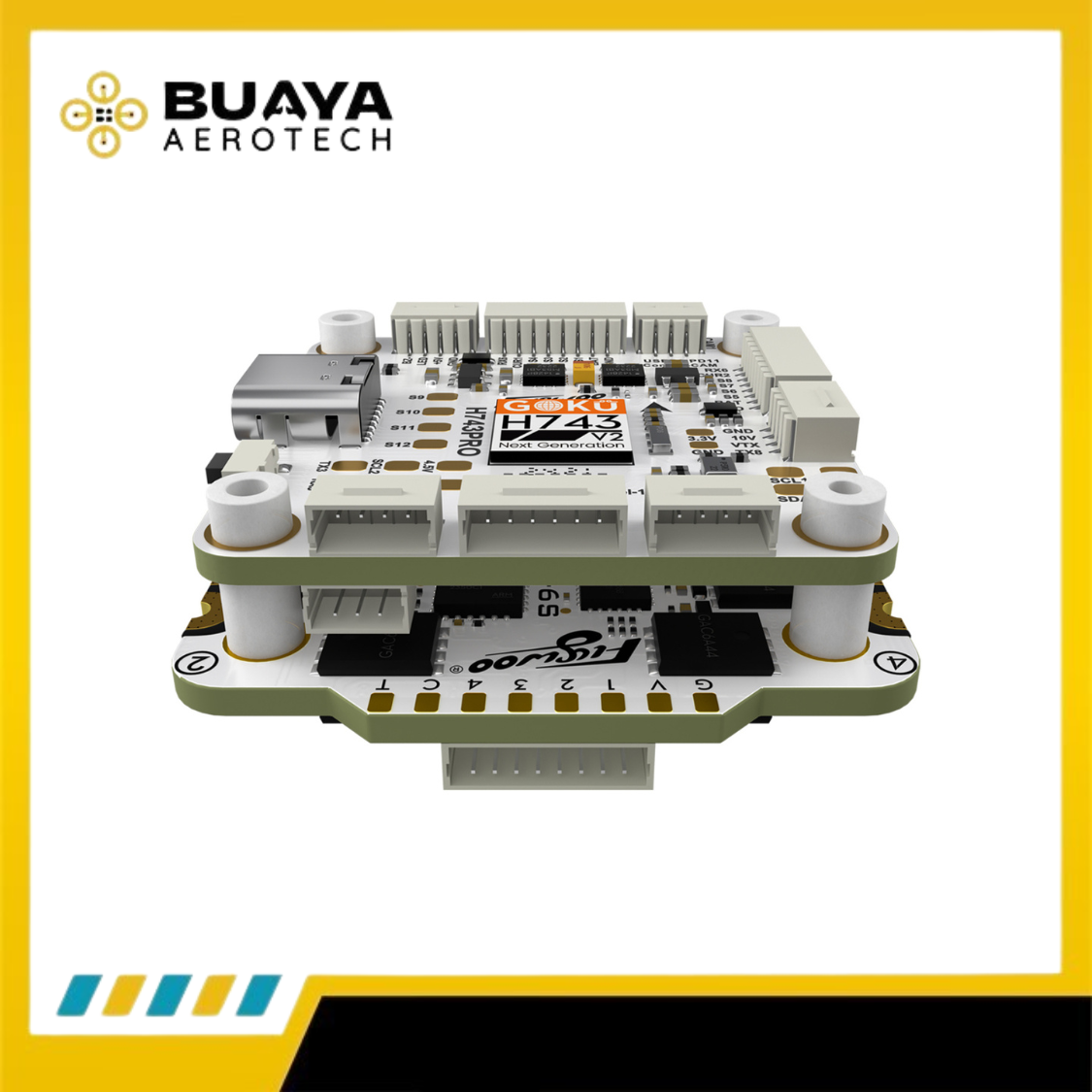

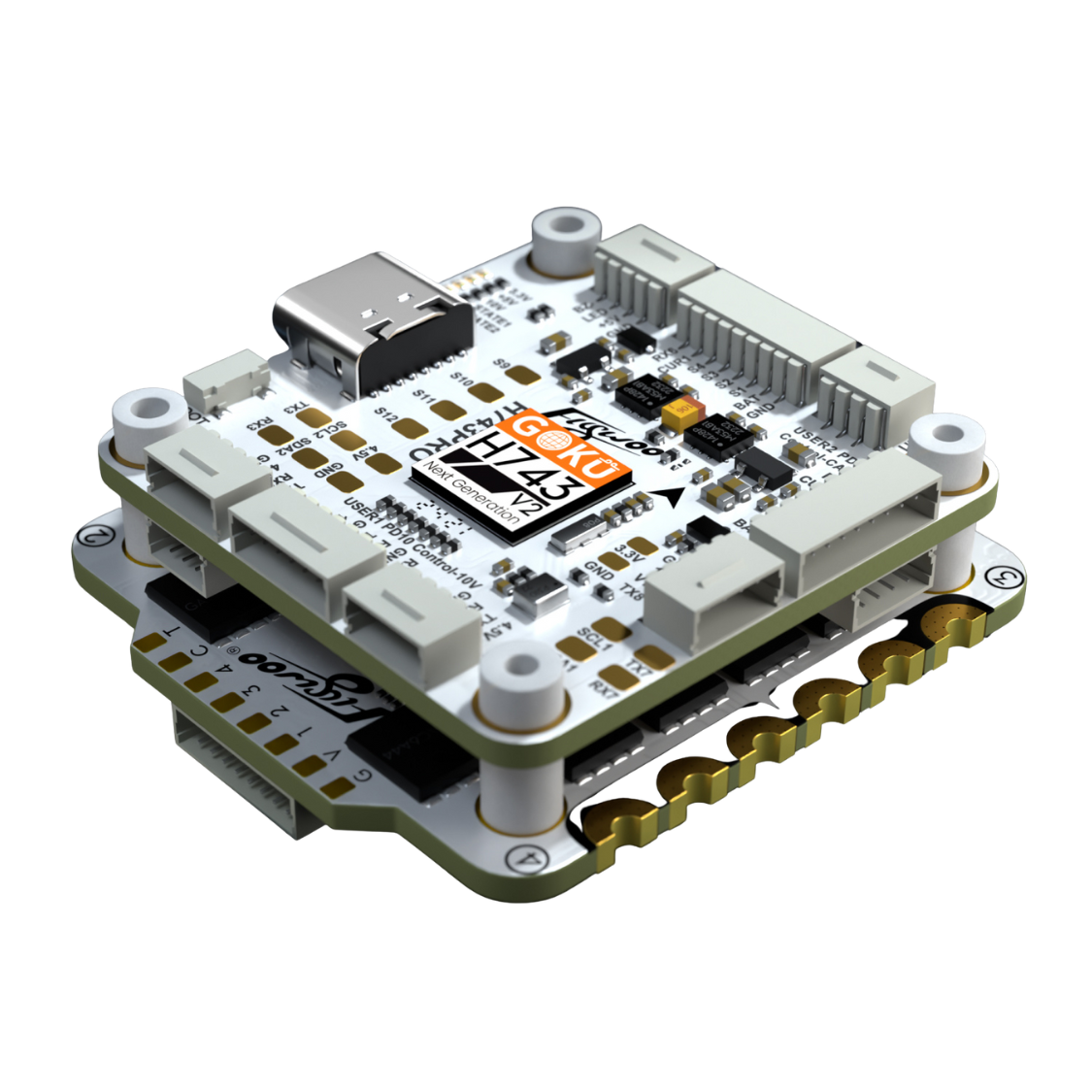

GOKU H743 Pro 32bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.
It offers 512MB blackbox , 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.
It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.
Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.
Highlights：
1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.

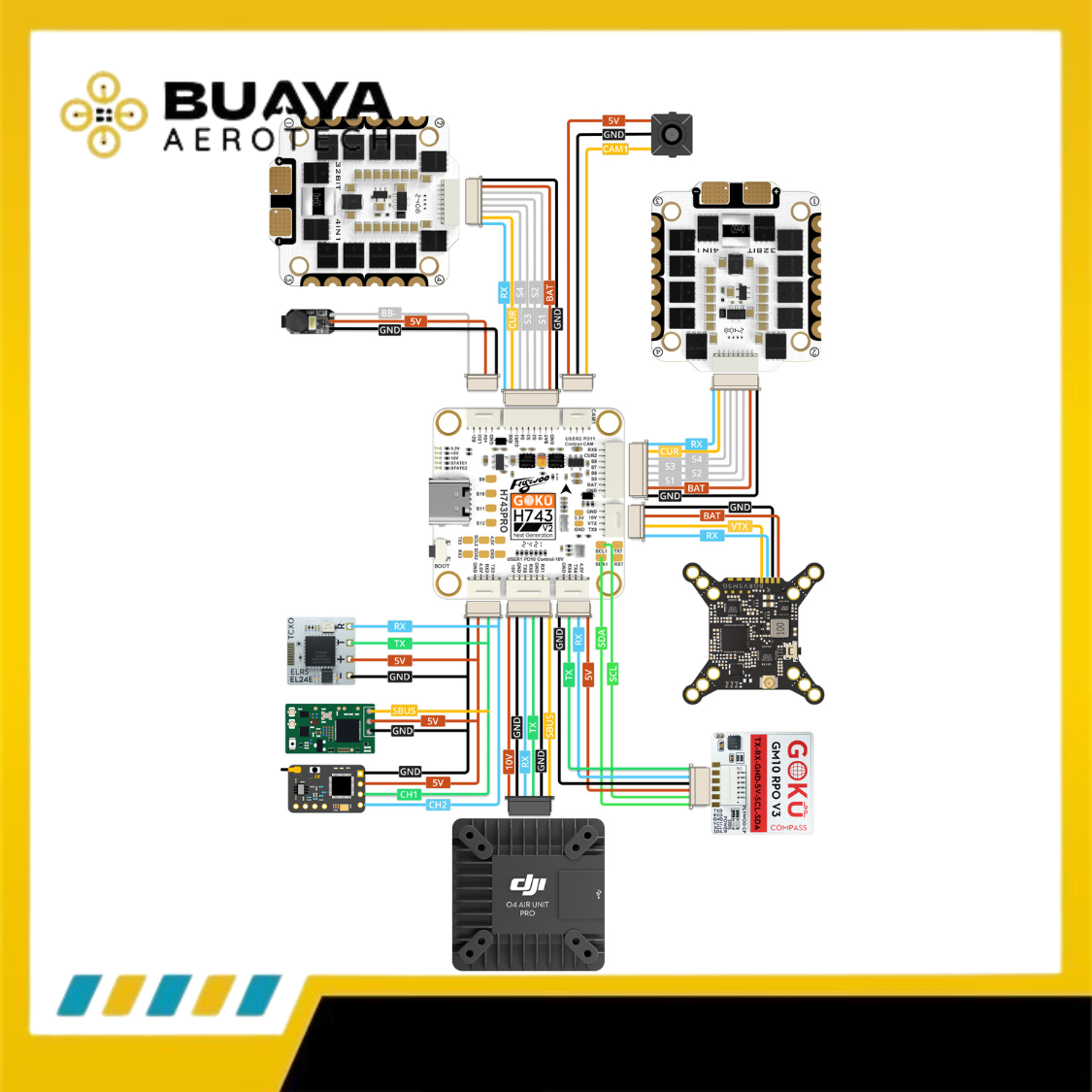

4. Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications：

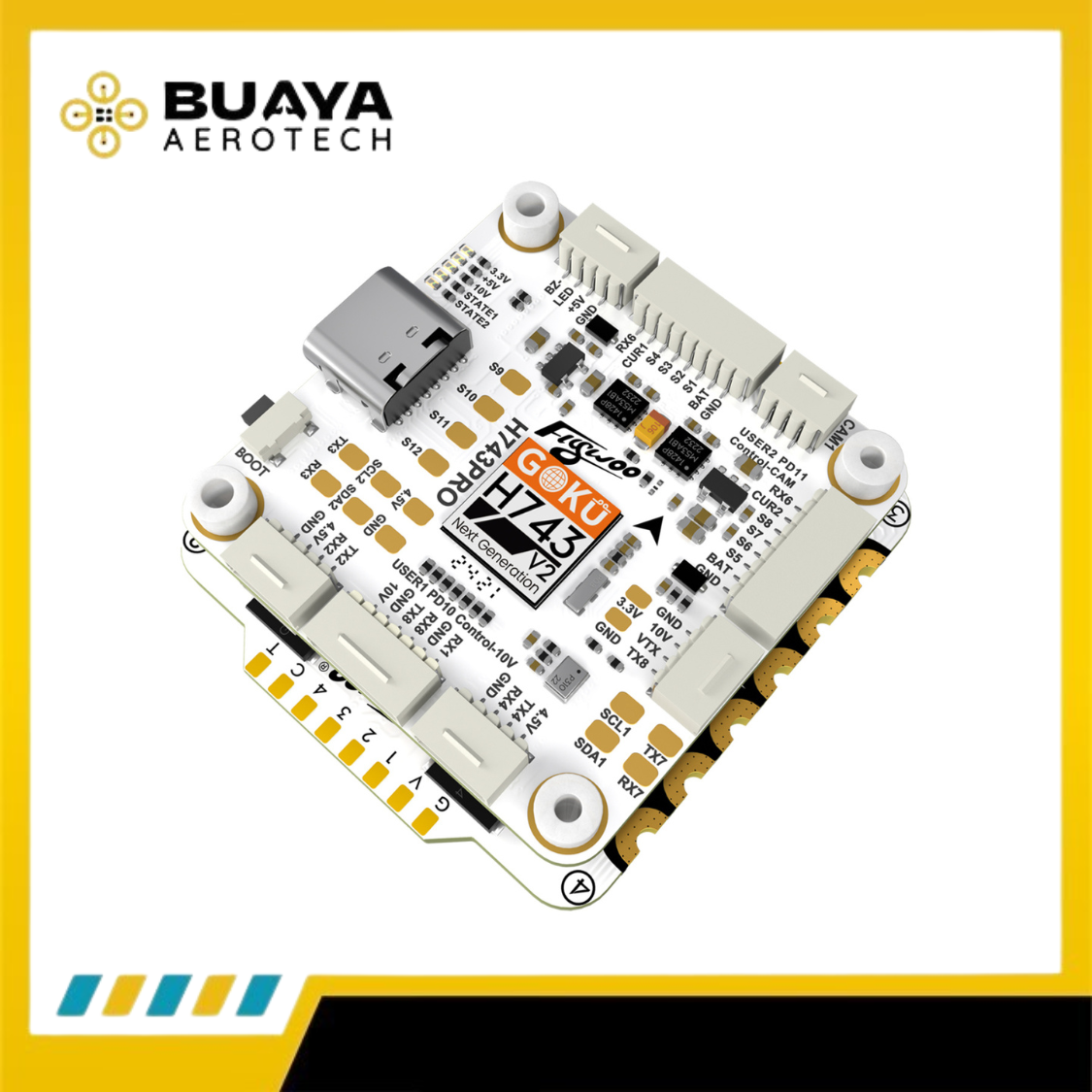

GOKU H743 PRO Flight Controller
* BetaFlight Firmware: Flywoo H743PRO
* INAV Firmware: Flywoo H743PRO
* APM Firmware:Flywoo H743PRO
* Flash: 512MB
* MCU: STM32H743VIH6
* Gyroscope: ICM42688P*2
* OSD: AT7456E(LGA16)
* Barometer: DPS310/SPL06
* Black Box: 512MB
* UARTS: 1/2/3/4/6/7/8
* I2C:2
* PWM:12
* Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
* BEC: 10V3A/5V3A
* Camera support：CAM1,CAM2

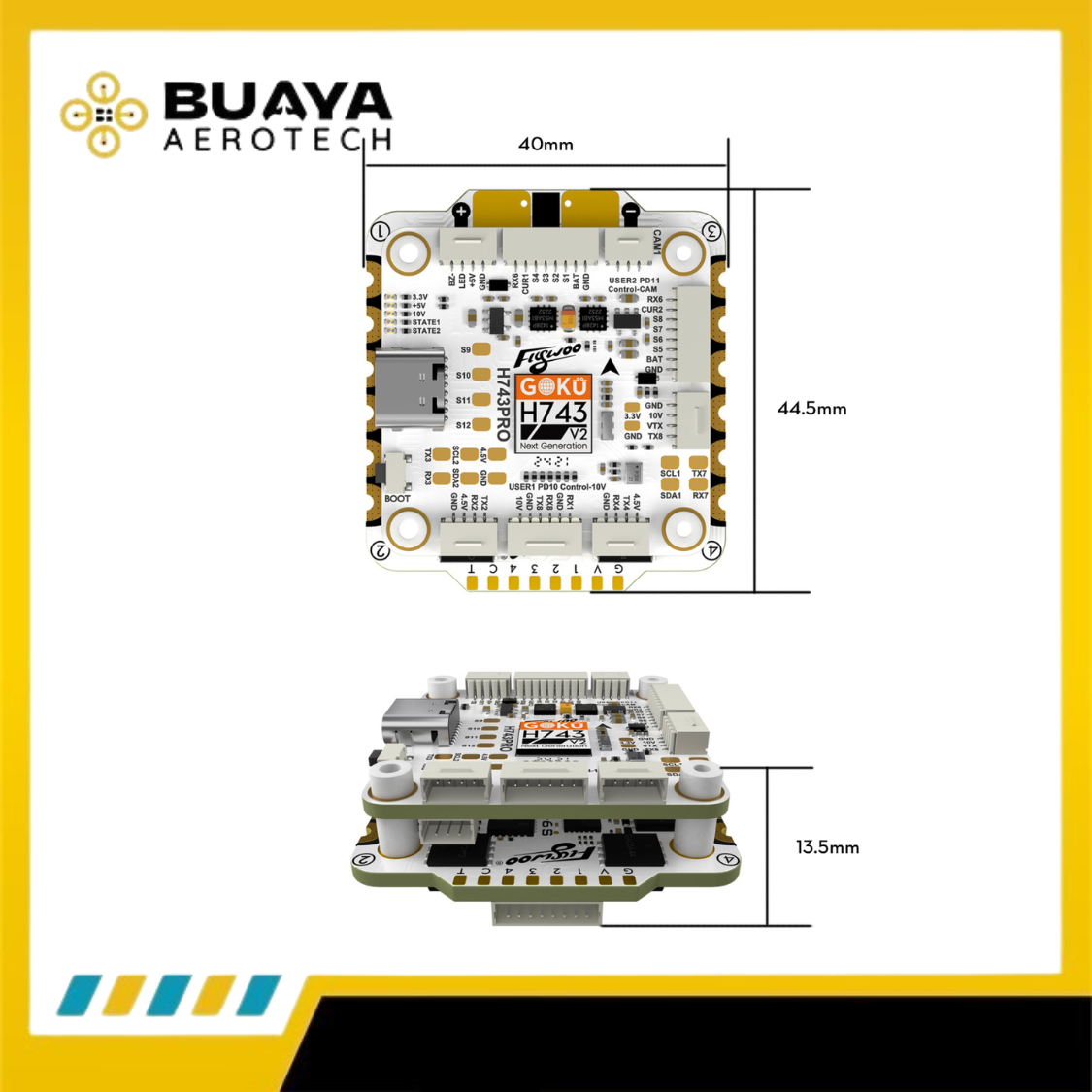

* Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
* Mounting Holes: M3 30x30mm
* Weight: 9.9g

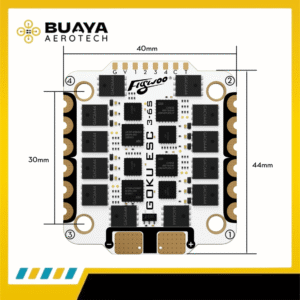

GOKU G55M AM32 4in1 ESC
* Support AM32
* Support Dshot300, Dshot600
* PWM frequency: 24k-128k
* Input Voltage: 3-6S Lipo
* Continuous Current: 55A
* Firmware:
* AM32：AT32DEVF421
* Weight: 15g
In the Box
1 x FC&ESC Connection Cable
1 x DJI O4/O4P Connection Cable
1 x Buzzer Connection Cable
1 x Receiver Connection Cable
1 x GPS Connection Cable
2 x Camera Connection Cable
1 x Analog VTX Connection cable
1 x XT60 Power Cable
9 x M3 Shock-Absorbing Ball
5 x M3 Rubber Ring
1 x Capacitors
5 x Nylon studs
5 x Anti-Slip Nuts
