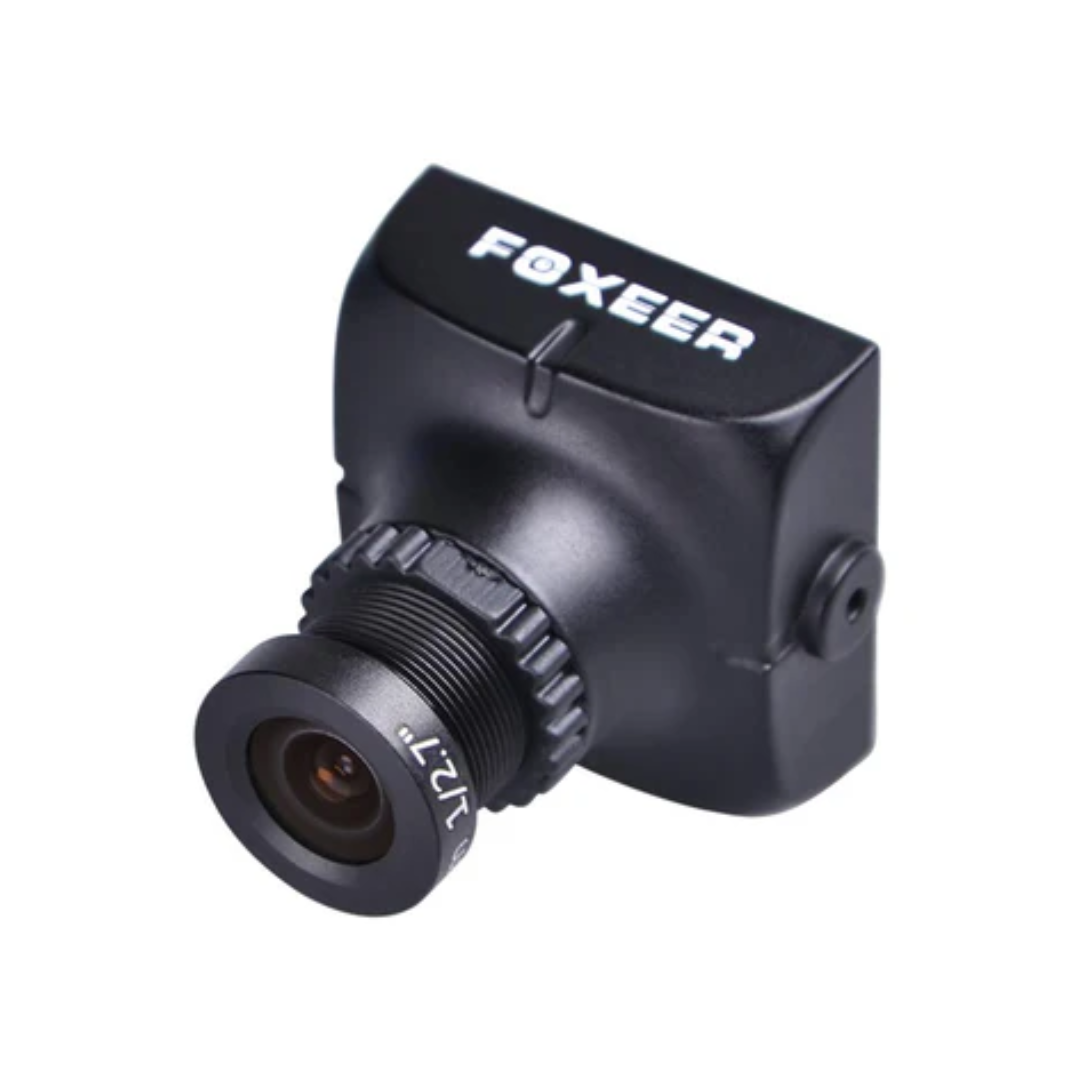

Salah satu kamera FPV yang paling populer di pasaran, sekarang telah di upgrade menjadi V2. XAT600M menggunakan sensor Sony Super HAD II CCD dan Nextchip 2040 DSP dengan lensa 2.5mm serta mendukung voltase yang beragam dari 5-40V. XAT600M v2 dilengkapi dengan OSD dongle sehingga anda bisa dengan mudah mengubah setingan.
Deskripsi:
Brand Name: Foxeer
Model: XAT600M
CCD: 1/3” Sony SUPER HAD II CCD
DSP model Nextchip 2040
Pixel: NTSC 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS): NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
Private shading: (PRIVACY) 1~8 private shading area
Motion Detection: (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Temperature: -10 C ~ 50 C
Working Humidity: 20~80%
Storage Temperature; -40 C ~ 60 C
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Weight: 14.6g(with bracket)
Power Consumption: 70mA
