GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.
Description
– Brand : FLYWOO
– Model : GM10 MINI V3 GPS

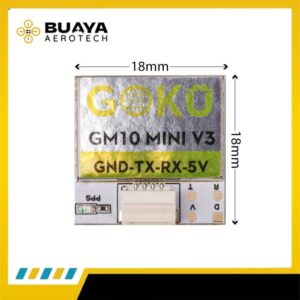

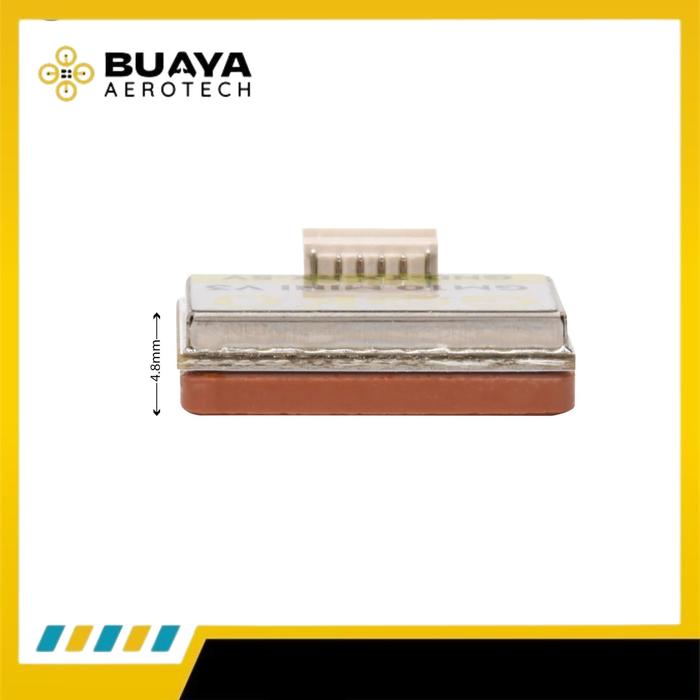

– Dimension :18mm*18mm*4.8mm
– Weight : 4.7g
– Connector : 1.00mm spacing between the 4pins patch seat
Features:
– GPS Module,Three Module
– 1.0mm spacing between the 4pins patch seat
Specification
– Chipset : M10050(Tenth Generation Chip)
– Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
– Default Protocol : GPS,Galileo,BeiDou
– Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
– Channels : 72 Searching Channel
Sensitivity
– Tracking : -162dBm
– Reacquisition : -160dBm
Data and Update Rate
– Support Rate : 4800bps to 921600bps,Default 115200bps
– Data Level : TTL or RS-232,Default TTL level
– Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
– Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
– Altitude : 50,000m Max
– Velocity : 500m/s Max
– Acceleration : Less than 4g
Power consumption
– VCC : DC Voltage ：5V
– Operating temp : -40 °C ~ +85°C
– Storage Temp : -40°C ~ +105°C
Indicator :
– PPS LED : yellow .PPS LED not bright when GPS not fixed,flashing when fixed

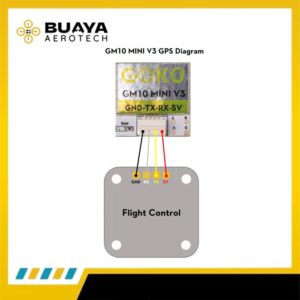

– The Module’s Pins : GND TX RX 5V
