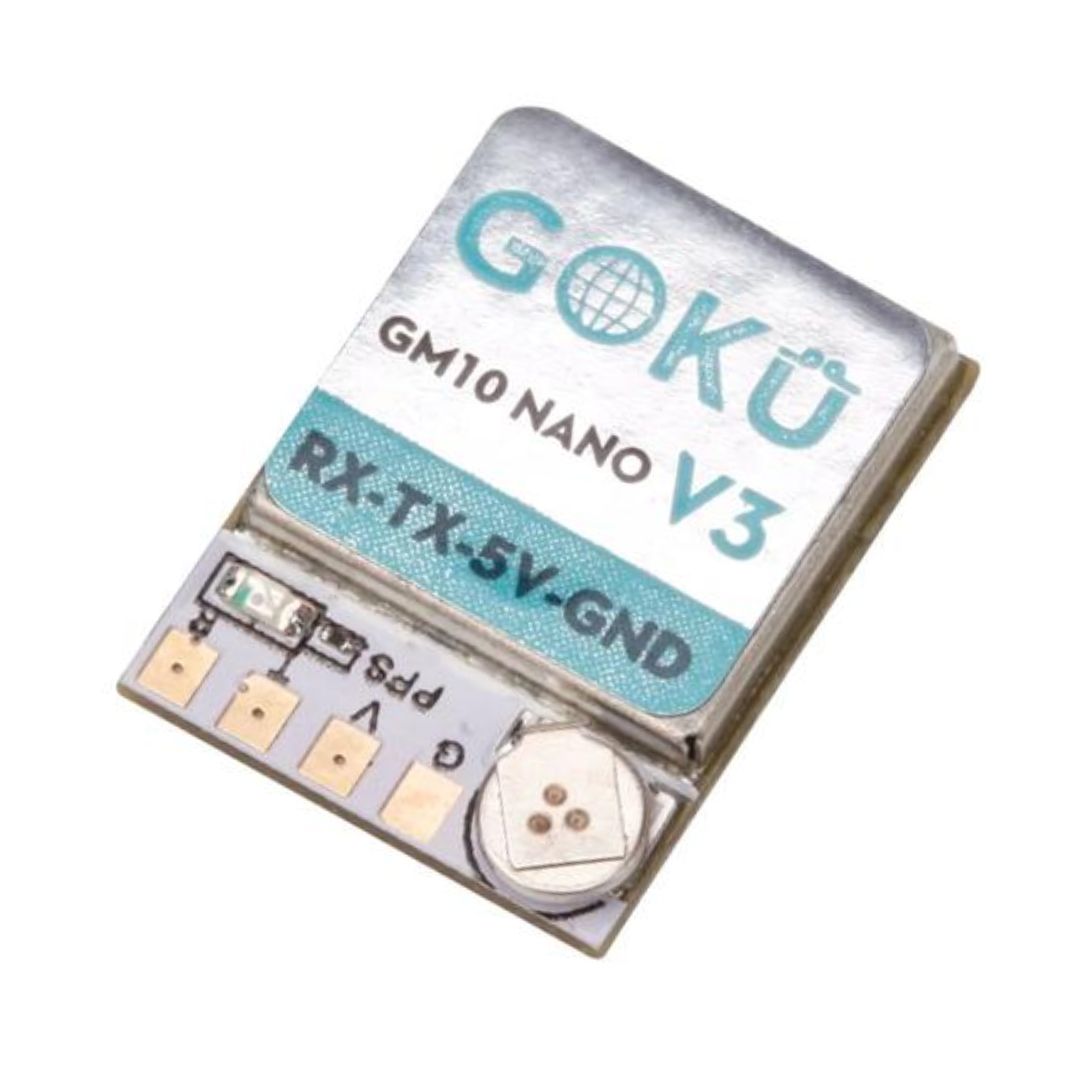

Flywoo Goku GM10 Nano V3 GPS

GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster. Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS

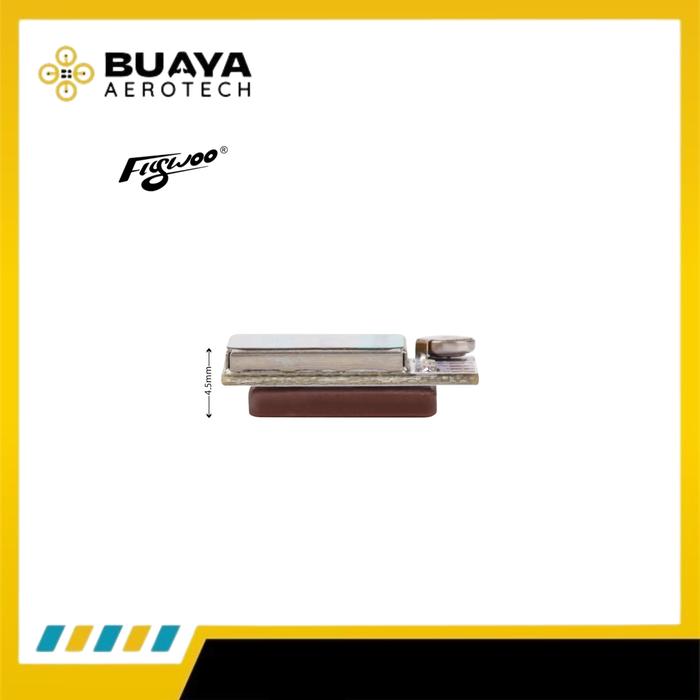

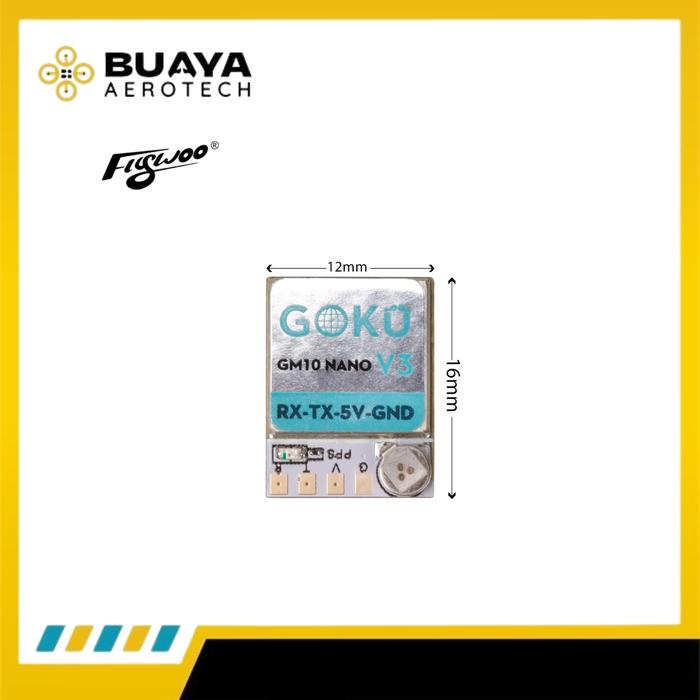

Dimension :12mm*16mm*4.5mm
Weight : 2.2g
Connector : 4pins Pad

Features:
– GPS Module,Three Module
– 4pins Pad，ultra light weight

Specification
– Chipset : M10050(Tenth Generation Chip)
– Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
– Default Protocol : GPS,Galileo,BeiDou
– Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
– Channels : 72 Searching Channel

Sensitivity
– Tracking : -162dBm
– Reacquisition : -160dBm

Data and Update Rate
– Support Rate : 4800bps to 921600bps,Default 115200bps
– Data Level : TTL or RS-232,Default TTL level
– Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
– Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits
– Altitude : 50,000m Max
– Velocity : 500m/s Max
– Acceleration : Less than 4g

Power consumption
– VCC : DC Voltage ：3.3-5V
– Operating temp :　-40 °C ~ +85°C
– Storage Temp : -40°C ~ +105°C

Indicator :
– PPS LED : yellow .PPS LED not bright when GPS not fixed,flashing when fixed

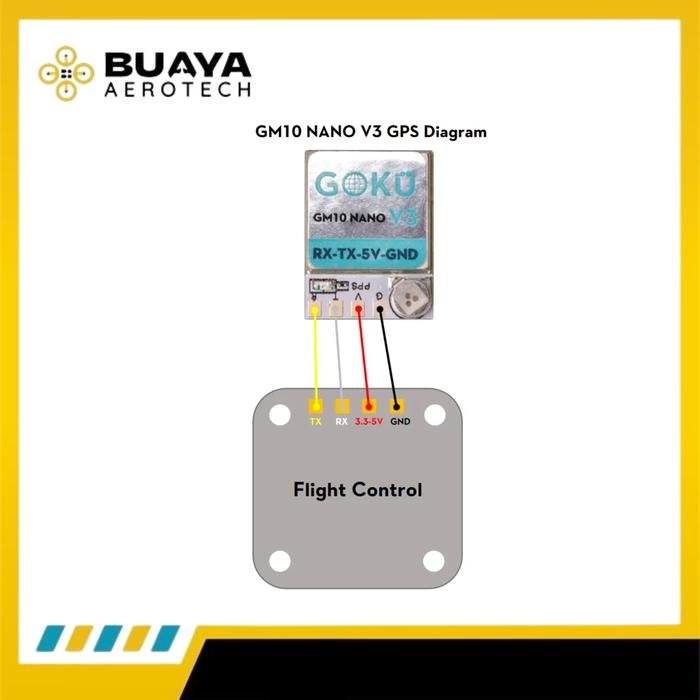

– The Module’s Pins : RX TX 3.3-5V GND
