Flywoo GOKU F722 PRO V2 30X30 F7 Flight Controller

Product Deskription Highlights：
– High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
– Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
– Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
– Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
– Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.
– Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
– Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.

Specifications：
– Product Name: GOKU F722PRO
– BF Flight Controller Firmware: FLYWOO F722PRO
– INAV Firmware: FLYWOO F7
– MCU: STM32F722
– Gyroscope: ICM42688
– OSD: AT7456E
– Barometer: DPS310 / SPL06
– Black Box: 16MB
– UARTS: 1/2/3/4/5/6
– Input Voltage: 7.4V-26V/2-6S LiPo
– BEC: 10V3A/5V3A

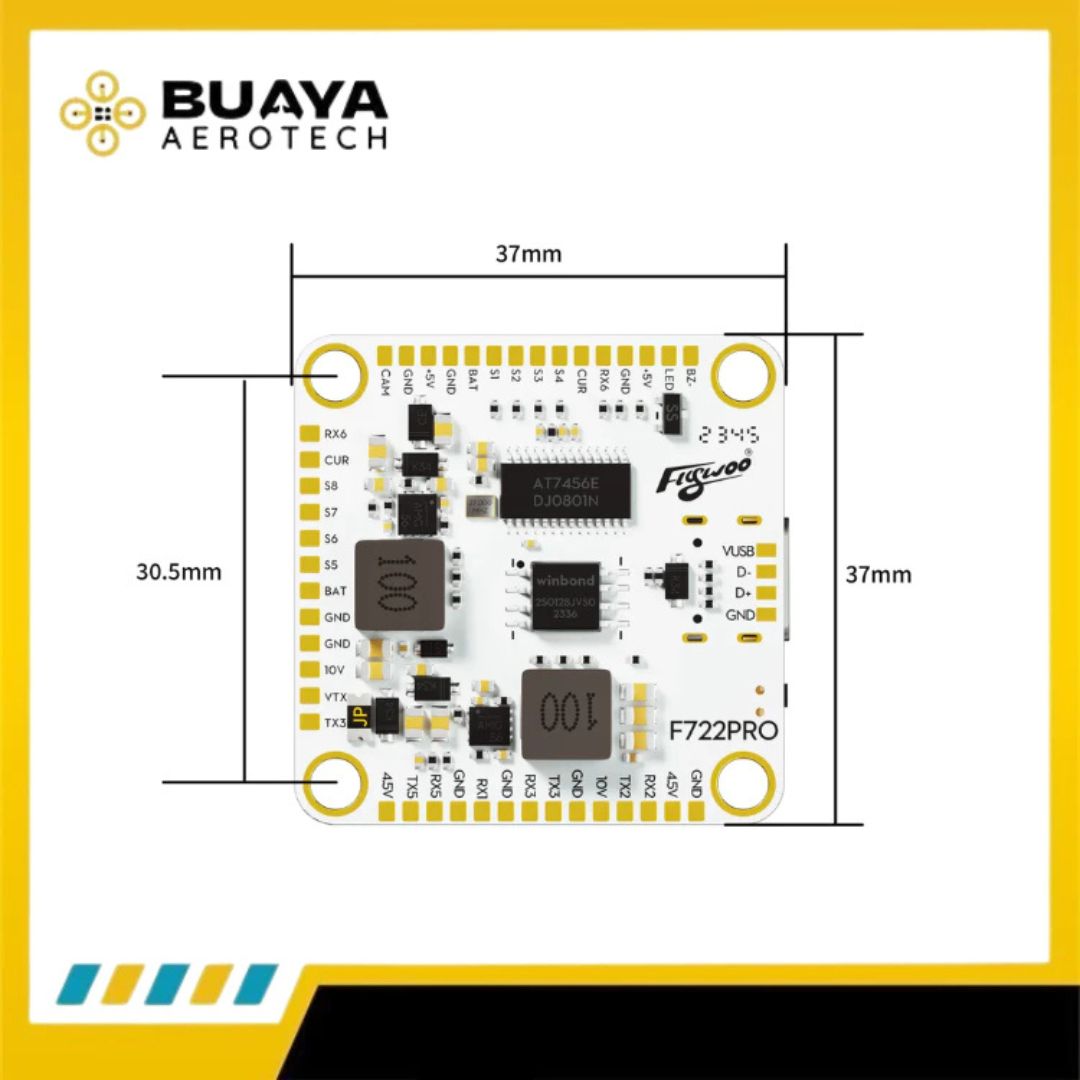

– Flight Controller Size: 37mm x 37mm x 8mm
– Mounting Holes: M3 30x30mm
– Weight: 9.9g

In the Box
1 x FC&ESC Connection Cable
1 x Buzzer Connection Cable
1 x GPS Connection Cable
1 x DJI O3 Connection Cable
1 x Receiver Connecton Cable
4 x M3 Shock-Absorbing Ball
7 x M3 Rubber Ring
1 x Analog VTX Connection cable
1 x Camera Connection Cable
