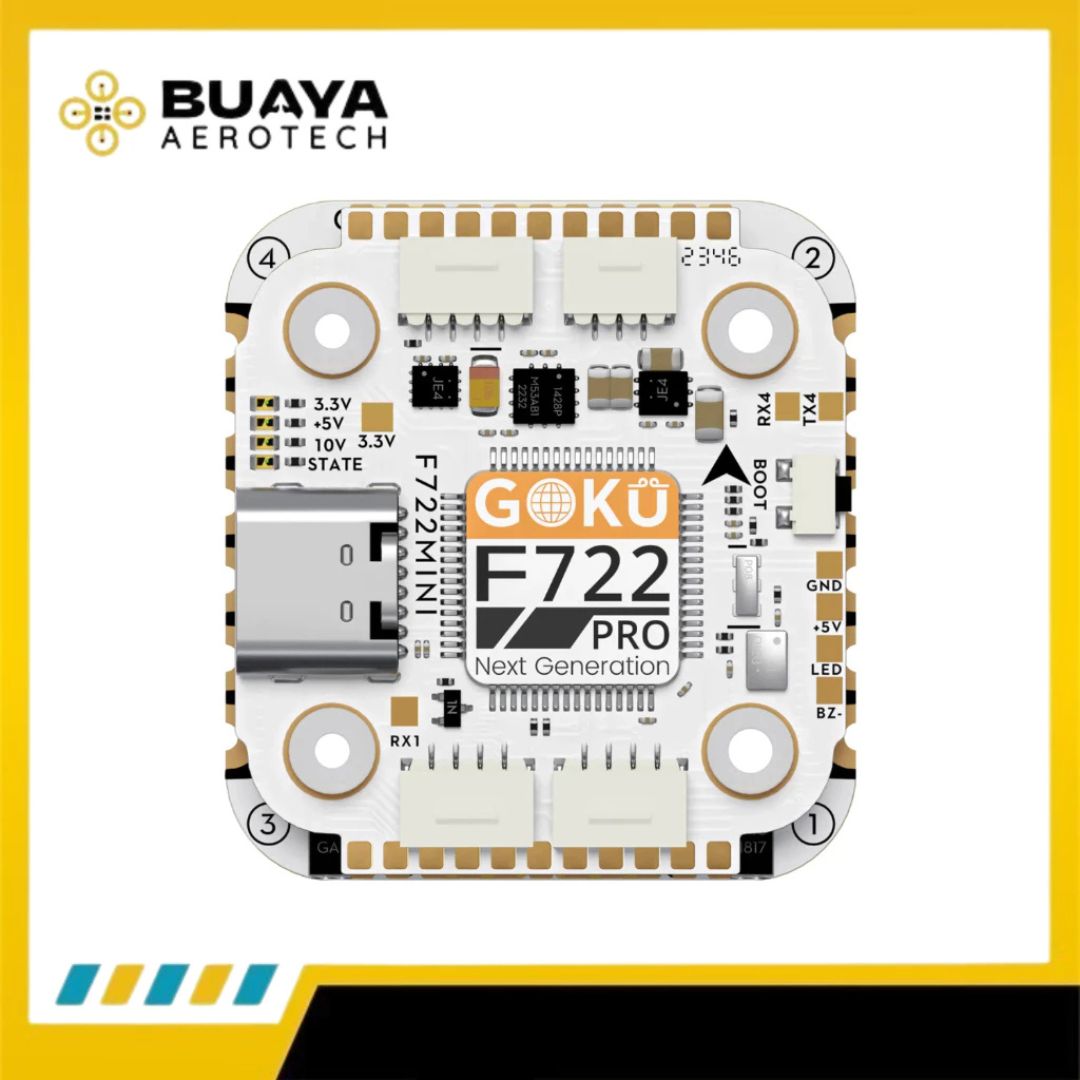

The new generation F722 PRO Mini V2 flight controller from FLYWOO not only offers a standard 20mm size, high-performance STM32 F722 main control, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.
It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.
Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.
Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI’s advanced digital transmission system with their builds.
Specification GOKU F722 PRO Mini V2 Flight Controller :
– BF Flight Controller Firmware : FLYWOO F722PROV2
– INAV Firmware : FLYWOO F722PRO
– MCU : STM32F722
– Gyroscope : ICM42688
– OSD : AT7456E
– Barometer : DP310
– Black Box : 16MB
– UARTS: 1/2/3/4/5/6
– Input Voltage : 7.4V-26V/2-6S LiPo
– BEC : 10V2A/5V2A
– Flight Controller Size : 32mm x 29mm x 20mm
– Mounting Holes : M2 20x20mm
– Weight : 9.9g
Specification GOKU G45M 32bit 4in1 ESC
– Support AM32
– Support Dshot300, Dshot600,Dshot1200
– PWM frequency : 24k-128k
– Input Voltage : 2-6S Lipo
– Continuous Current : 45A
– Firmware : GOKU_F4A32_PRO
