Product Deskription Highlights：
* High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
* Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
* Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
* Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
* Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
* Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
* Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
Specifications：

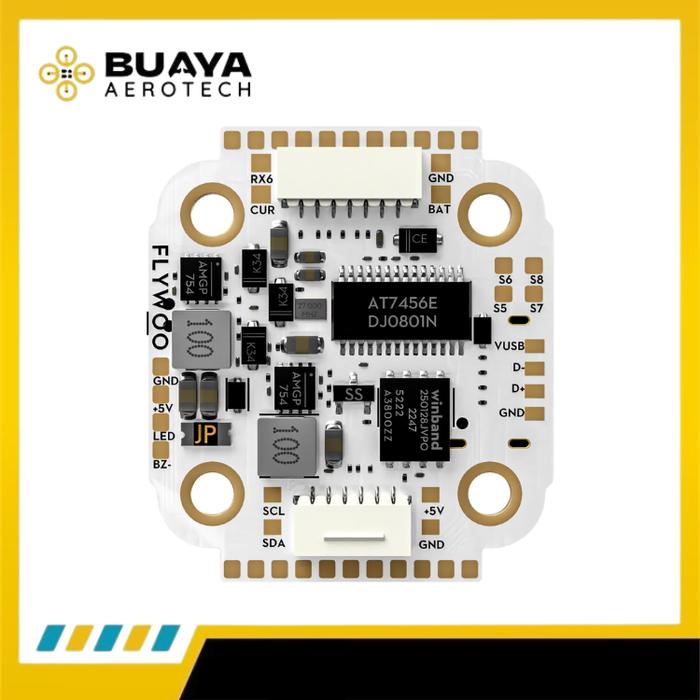

* GOKU F722 PRO Mini V2 Flight Controller
* BF Flight Controller Firmware: FLYWOO F722PROV2
* INAV Firmware: FLYWOO F722PRO
* MCU: STM32F722
* Gyroscope: ICM42688
* OSD: AT7456E
* Barometer: DPS310 / SPL06
* Black Box: 16MB
* UARTS: 1/2/3/4/5/6
* Input Voltage: 7.4V-26V/2-6S LiPo
* BEC: 10V2A/5V2A
* Flight Controller Size: 32mm x 29mm x 20mm
* Mounting Holes: M2 20x20mm
* Weight: 9.9g
In the Box
1 x FC&ESC Connection Cable
1 x Buzzer Connection Cable
1 x GPS Connection Cable
1 x DJI O3 Connection Cable
1 x Receiver Connection Cable
5 x M3 Shock-Absorbing Ball
5 x M2 Shock-Absorbing Ball
1 x Camera Connection Cable
