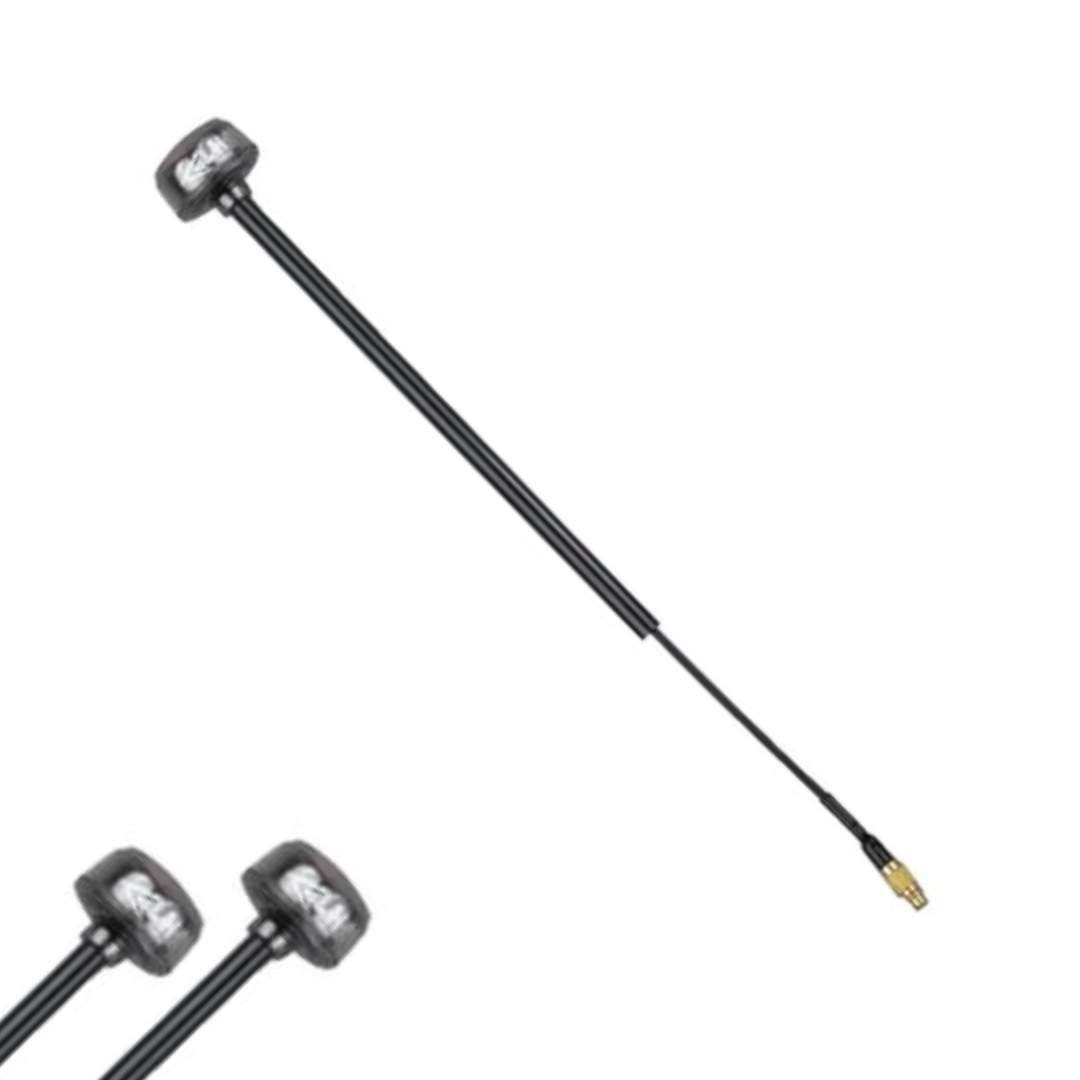

Flywoo Circular Antenna is the smallest and lightest circular polarized antennas on the market . perfect for both lightweight racing builds or freestyle quads Or LR drone .
Features
– Flywoo Circular antenna housing is made out of injected molded polycarbonate ,to avoid buying fragile stock antennas again and again.
– Circularly polarized and has excellent multipath rejection capability . Effectively suppress screen flicker caused by multi-path interference. ( Multipath interference is the most common reason for bad video quality, in the form of random color change, static, scrambled image and drop-outs. It happens when the signal is reflected from object and gets distorted with phase delay, and it interferes with the main signal. )
– Have an amazing max gain of 2.2dBic , Significantly Improved Range with a Higher Gain
– Works great as both a transmitting or receiving antenna
– Virtually Perfect Axial Ratio
– Extended Wire Length
Specifications
– Gain : 2.2dBi
– Axial ratio : 1.0 Around
– Band Width : 5.6Ghz – 6.2GHz
– Axial Ratio : Around 1.0
– Polarization : LHCP
– Connector : MMCX Straight

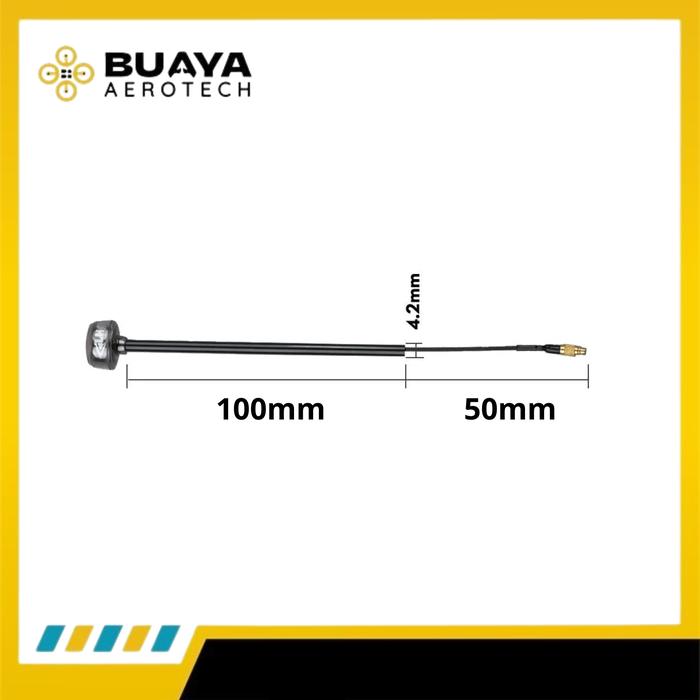

– Length Total : 150mm
– Tube Length : 100mm
*mohon perhatikan rincian panjang pada foto produk yaa sob 🙂
