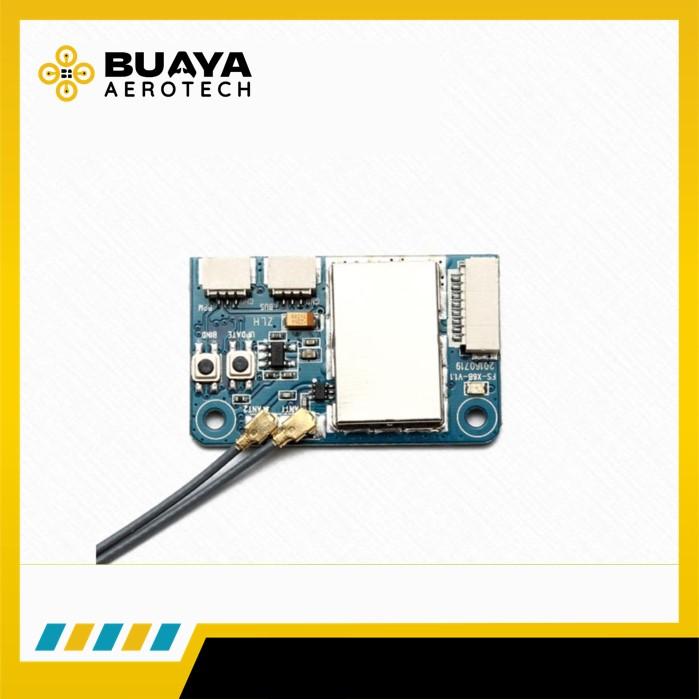

FS-X6B merupakan receiver yang memiliki 6 channel didesain untuk multirotor. Receiver ini menggunakan protokol AFHDS 2A (Automatic Frequency Hopping Digital system) dan dual omnidireksional antenna dengan mekanisme pengurangan gangguan. Receive rini sangat compact, mudah di install dan memiliki antar muka yg mudah dipakai. FS-X6B mendukung 6 channel output PWM, output PPM standar, dan mendukung i-BUS hingga 18 channel.
Spesifikasi:
Brand Name: Flysky
Item: X6B i-BUS 2.4GHz 6CH Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Rotor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X.

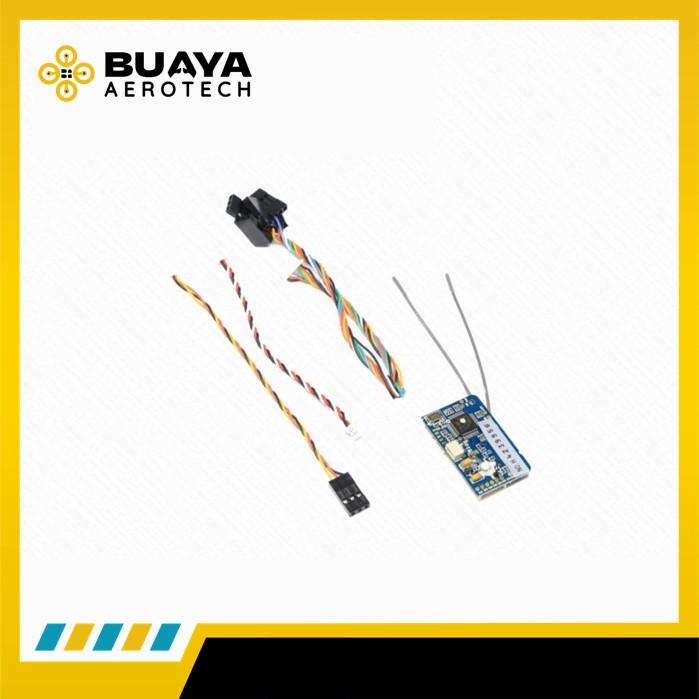

Include:
1x Flysky X6B 2.4GHz 6CH Receiver
4x Cables
