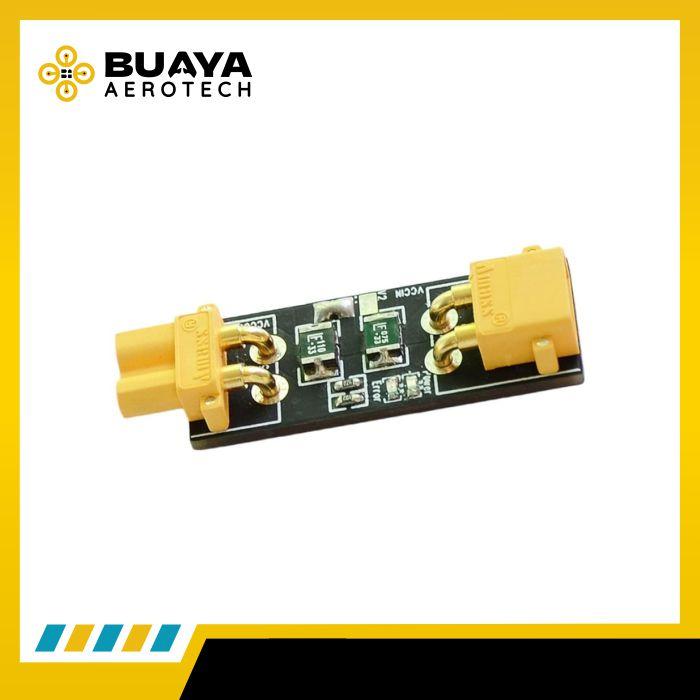

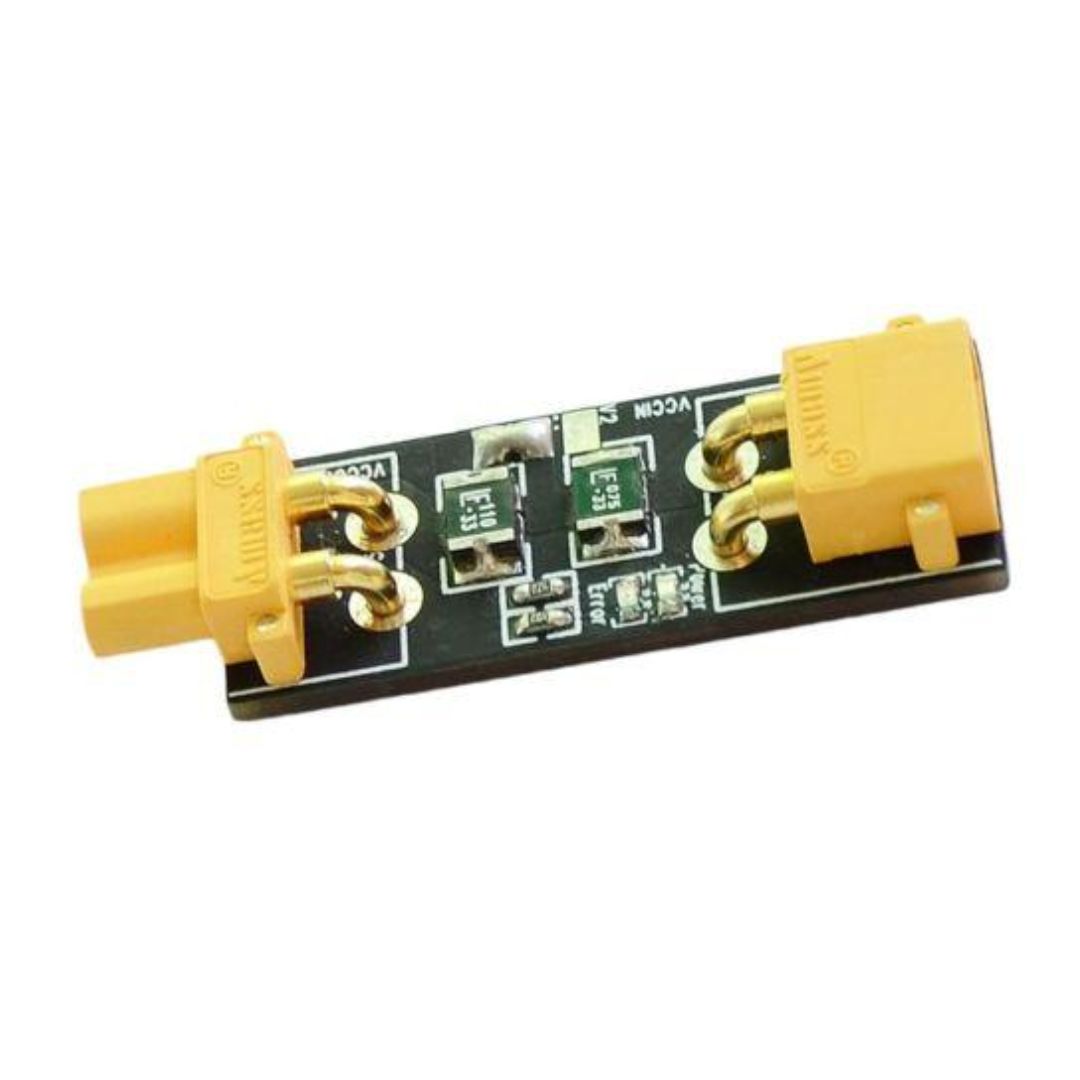

Amass XT30 Smoke Stopper 1-6S 33V Connecting Line Short Tester

Deskripsi Amass XT30 Smoke Stopper 1-6S 33V Connecting Line Short Tester

Amass XT30 Smoke Stopper 1-6S 33V Connecting Line Short Tester Circle Breaker, it helps to connect the line or circle correctly, reduce connection error and explosion caused by the error connection, but the smoke stopper could not 100% to detected the connection error danger, Try to connect line correctly or do not connect circle go-as-your-please.

Descrption:
– Product: XT30 Smoke Stopper Circle Breaker
– Battery: 1-6s Capable(33v max)
– 0.5A Hold current,1A Trip Current
– 1.1A Hold current,2.2A Trip Current
– 0.5S Trip time

How to use it:
– Green Light means it is ok
– Green Light dim or blinking,it means Fuse tripped.
– Red Light means connection error
– Red Light dim or blinking, it means Fuse tripped
– Optional 0.5A Hold Current, 1A Trip Current
– Optional 1.1A Hold Current, 2.2A Trip Current

Unplug for 10 seconds can reset the Solid State Smoke Stopper.

Package:
1* XT30 Smoke Stopper
